trivy-operator 2.3: Patch release for Admisssion controller

February 04, 2022

Page content

Today I am happy to announce the release of trivy-operator 2.3. This blog post focuses on the functionality provided by the trivy-operator 2.3 release.

What is trivy-operator?

Trivy-operator is a Kubernetes Operator based on the open-source container vulnerability scanner Trivy. The goal of this project is to provide a vulnerability scanner that continuously scans containers deployed in a Kubernetes cluster. Built with Kubernetes Operator Pythonic Framework (Kopf) There are a few solution for checking the images when you deploy them to the Kubernetes cluster, but fighting against vulnerabilities is a day to day task. Check once is not enough when every day is a new das for frats. That is why I created trivy-operator so you can create scheduled image scans on your running pods.

Bugfixes

With the release of trivy-operator 2.3 I fixed a few minor problems:

Bugfix

Add ability to Clusterwide Admission Controller
Logging improvements
Remove duplication on scanning, cronejob

Trivy Image Validator

The admission controller function can be configured as a ValidatingWebhook in a k8s cluster. Kubernetes will send requests to the admission server when a Pod creation is initiated. The admission controller checks the image using trivy if it is in a namespace with the label trivy-operator-validation=true.

You can define policy to the Admission Controller, by adding annotation to the pod trough the deployment:

spec:
  ...
  template:
    metadata:
      annotations:
        trivy.security.devopstales.io/medium: "5"
        trivy.security.devopstales.io/low: "10"
        trivy.security.devopstales.io/critical: "2"
...

Where you can find:

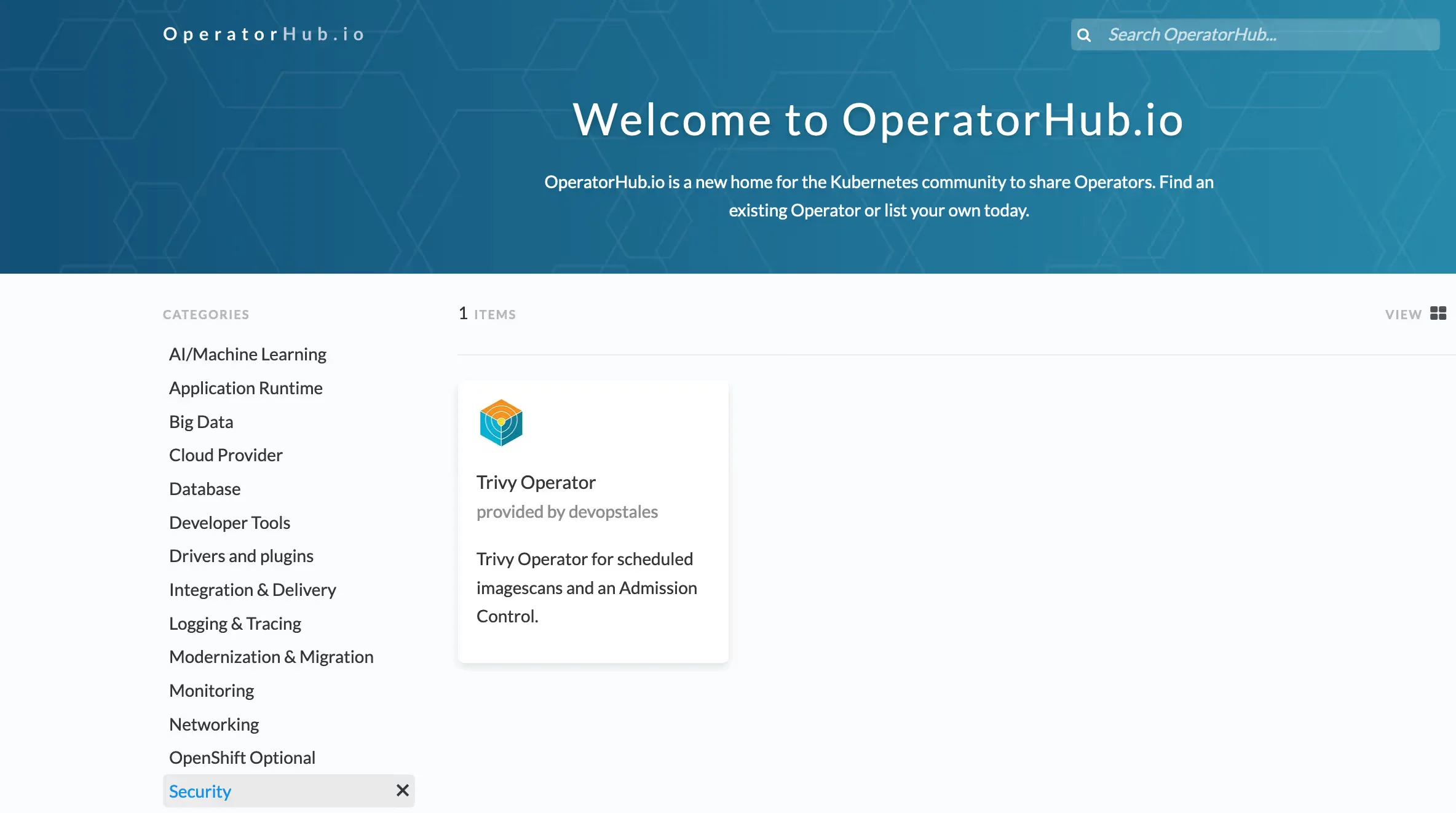

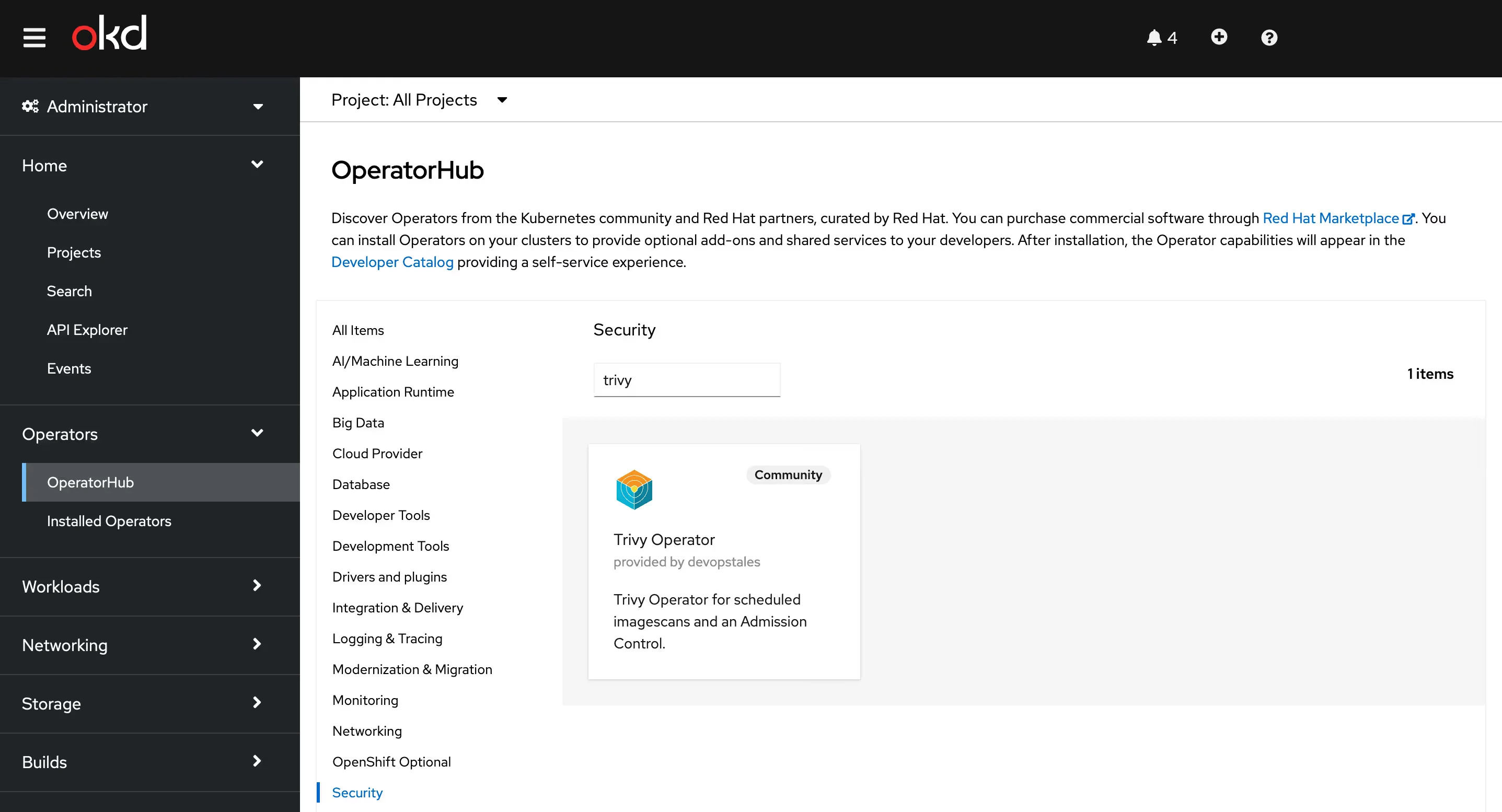

With the release of trivy-operator 2.3 I published trivy-operator with OperatorFramework to OperatorHub:

OperatorHub

Usage

To ease deployment I created a helm chart for trivy-operator.

helm repo add devopstales https://devopstales.github.io/helm-charts
helm repo update

Create a value file for deploy:

cat <<'EOF'> values.yaml
image:
  repository: devopstales/trivy-operator
  pullPolicy: Always
  tag: "2.3"

imagePullSecrets: []
podSecurityContext:
  fsGroup: 10001
  fsGroupChangePolicy: "OnRootMismatch"

serviceAccount:
  create: true
  annotations: {}
  name: "trivy-operator"

monitoring:
  port: "9115"

serviceMonitor:
  enabled: false
  namespace: "kube-system"

storage:
  enabled: true
  size: 1Gi

NamespaceScanner:
  crontab: "*/5 * * * *"
  namespaceSelector: "trivy-scan"

registryAuth:
  enabled: false
  registry:
  - name: docker.io
    user: "user"
    password: "password"

githubToken:
  enabled: false
  token: ""
EOF

When the trivy in the container want to scan an image first download the vulnerability database from github. If you test many images you need a githubToken overcome the github rate limit and dockerhub username and password for overcome the dockerhub rate limit. If your store you images in a private repository you need to add an username and password for authentication.

The following tables lists configurable parameters of the trivy-operator chart and their default values.

Parameter	Description	Default
image.repository	image	devopstales/trivy-operator
image.pullPolicy	pullPolicy	Always
image.tag	image tag	2.1
imagePullSecrets	imagePullSecrets list	[]
podSecurityContext.fsGroup	mount id	10001
serviceAccount.create	create serviceAccount	true
serviceAccount.annotations	add annotation to serviceAccount	{}
serviceAccount.name	name of the serviceAccount	trivy-operator
monitoring.port	prometheus endpoint port	9115
serviceMonitor.enabled	enable serviceMonitor object creation	false
serviceMonitor.namespace	where to create serviceMonitor object	kube-system
storage.enabled	enable pv to store trivy database	true
storage.size	pv size	1Gi
NamespaceScanner.crontab	cronjob scheduler	“/5 * * *”
NamespaceScanner.namespaceSelector	Namespace Selector	“trivy-scan”
registryAuth.enabled	enable registry authentication in operator	false
registryAuth.registry	registry name for authentication
registryAuth.user	username for authentication
registryAuth.password	password for authentication
githubToken.enabled	Enable githubToken usage for trivy database update	false
githubToken.token	githubToken value	""

kubectl create ns trivy-operator
kubens trivy-operator
helm upgrade --install trivy devopstales/trivy-operator -f values.yaml

Monitoring

Trivy-operatos has a prometheus endpoint op port 9115 and can be deployed wit ServiceMonitor for automated scrapping.

curl -s http://10.43.179.39:9115/metrics | grep trivy_vulnerabilities
# HELP trivy_vulnerabilities_sum Container vulnerabilities
# TYPE trivy_vulnerabilities_sum gauge
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/openshift/mysql-56-centos7:latest",severity="scanning_error"} 1.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",severity="UNKNOWN"} 0.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",severity="LOW"} 83.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",severity="MEDIUM"} 5.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",severity="HIGH"} 7.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",severity="CRITICAL"} 4.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/library/nginx:1.18",severity="UNKNOWN"} 0.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/library/nginx:1.18",severity="LOW"} 126.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/library/nginx:1.18",severity="MEDIUM"} 25.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/library/nginx:1.18",severity="HIGH"} 43.0
trivy_vulnerabilities_sum{exported_namespace="trivytest",image="docker.io/library/nginx:1.18",severity="CRITICAL"} 21.0
# HELP trivy_vulnerabilities Container vulnerabilities
# TYPE trivy_vulnerabilities gauge
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="2.3.4",pkgName="pkgName",severity="LOW",vulnerabilityId="CVE-2011-3374"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="8.32-4",pkgName="pkgName",severity="LOW",vulnerabilityId="CVE-2016-2781"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="8.32-4",pkgName="pkgName",severity="LOW",vulnerabilityId="CVE-2017-18018"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="7.74.0-1.3",pkgName="pkgName",severity="CRITICAL",vulnerabilityId="CVE-2021-22945"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="7.74.0-1.3",pkgName="pkgName",severity="HIGH",vulnerabilityId="CVE-2021-22946"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="7.74.0-1.3",pkgName="pkgName",severity="MEDIUM",vulnerabilityId="CVE-2021-22947"} 1.0
trivy_vulnerabilities{exported_namespace="trivytest",image="docker.io/nginxinc/nginx-unprivileged:latest",installedVersion="7.74.0-1.3",pkgName="pkgName",severity="LOW",vulnerabilityId="CVE-2021-22898"} 1.0

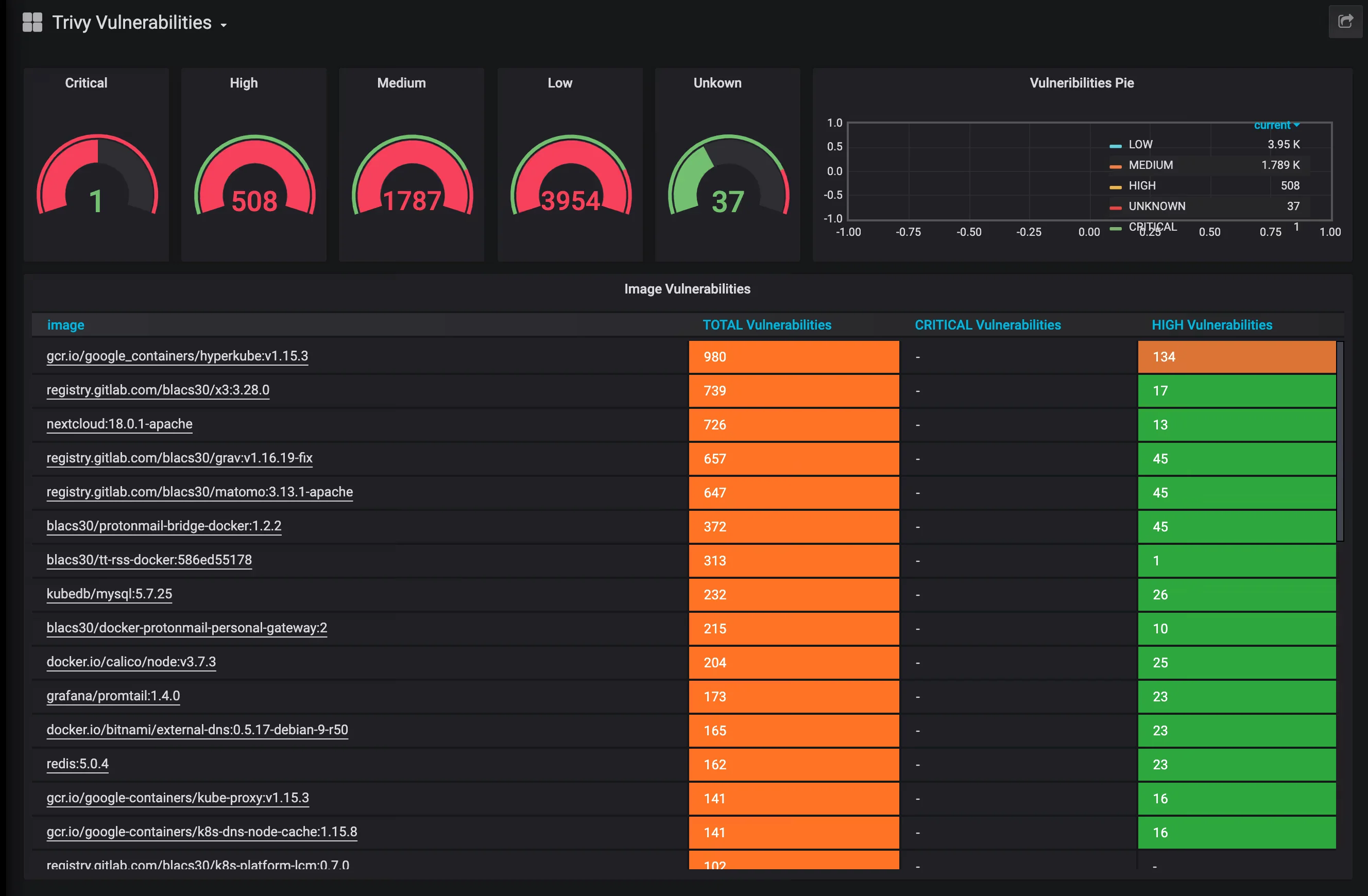

Grafana Dashboard
