Configurate HA opnsense cluster

In this post I will configure 2 opnsense server to a HA cluster.

The Architecture

 ------ WAN ------
 |               |
PF1 -- sync -- PF2
 |               |
 ----- LAN -------

WAN: 192.168.0.0/24 (Bridgelt)
LAN: 192.168.20.0/24
SYNC: 192.168.30.0/24
opn01:
WAN 192.168.0.28
LAN: 192.168.20.28
SYNC:192.168.30.28

opn02:
WAN 192.168.0.29
LAN: 192.168.20.29
SYNC:192.168.30.29

Firewall rules For sync

On both firewalls add two rules to allow traffic on the SYNC interface:
go to Firewall > Rules > Sync and click Add.

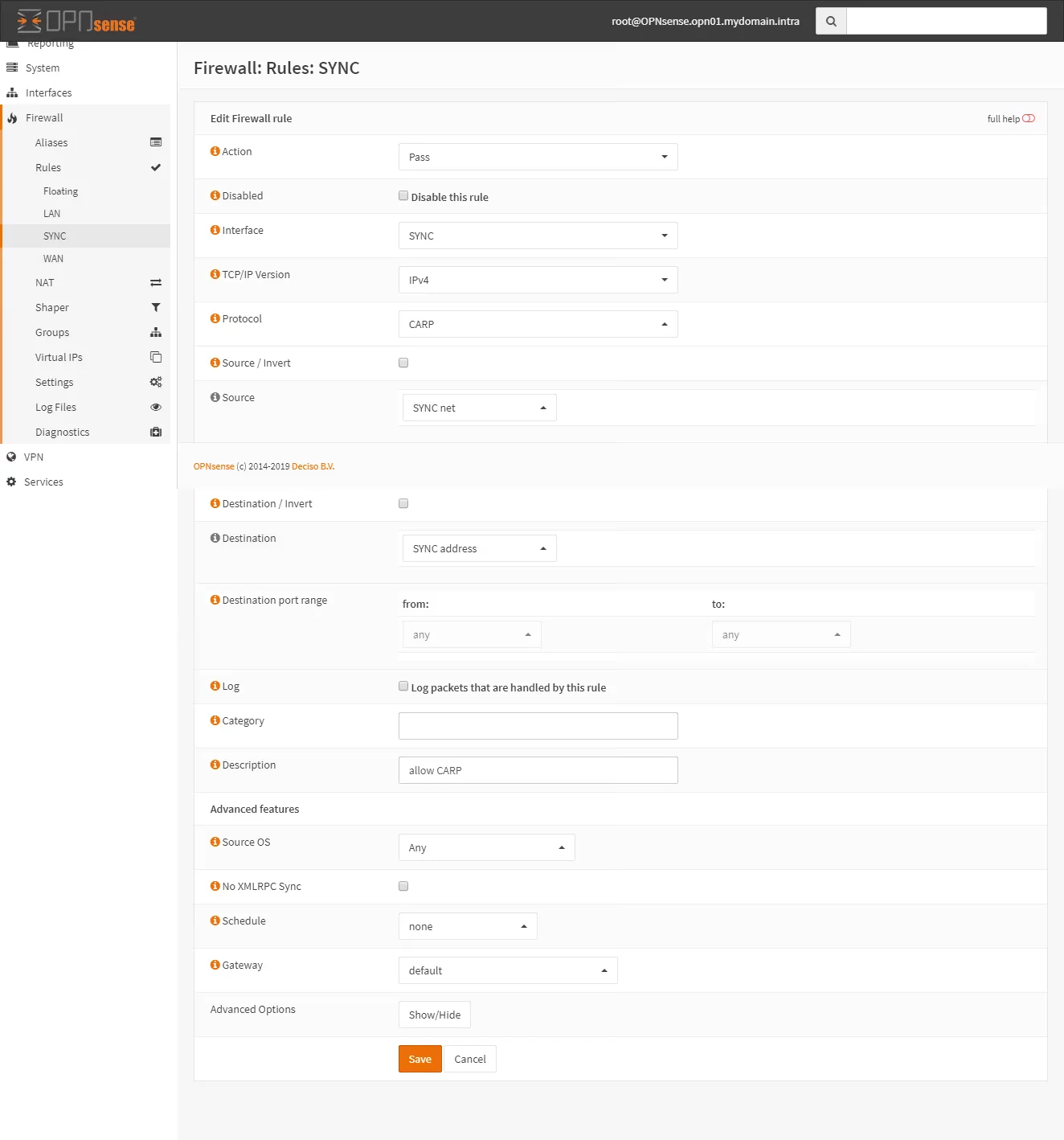

Rule 1: Example image

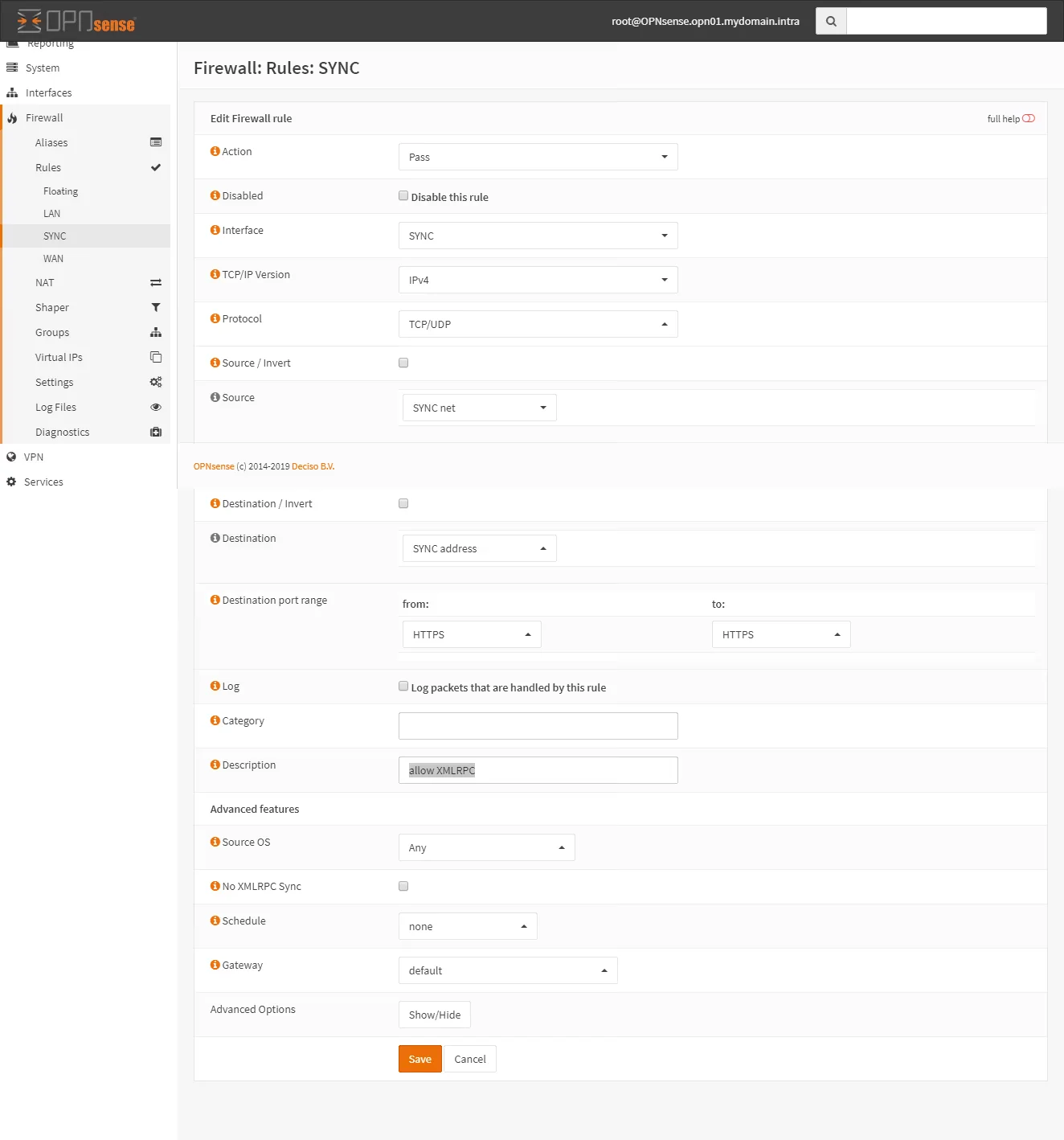

Rule 2: Example image

Rule 3: Example image

Synchronization Settings

Go to System > High Availalility > Settings. Configure the sections like on the pictures.

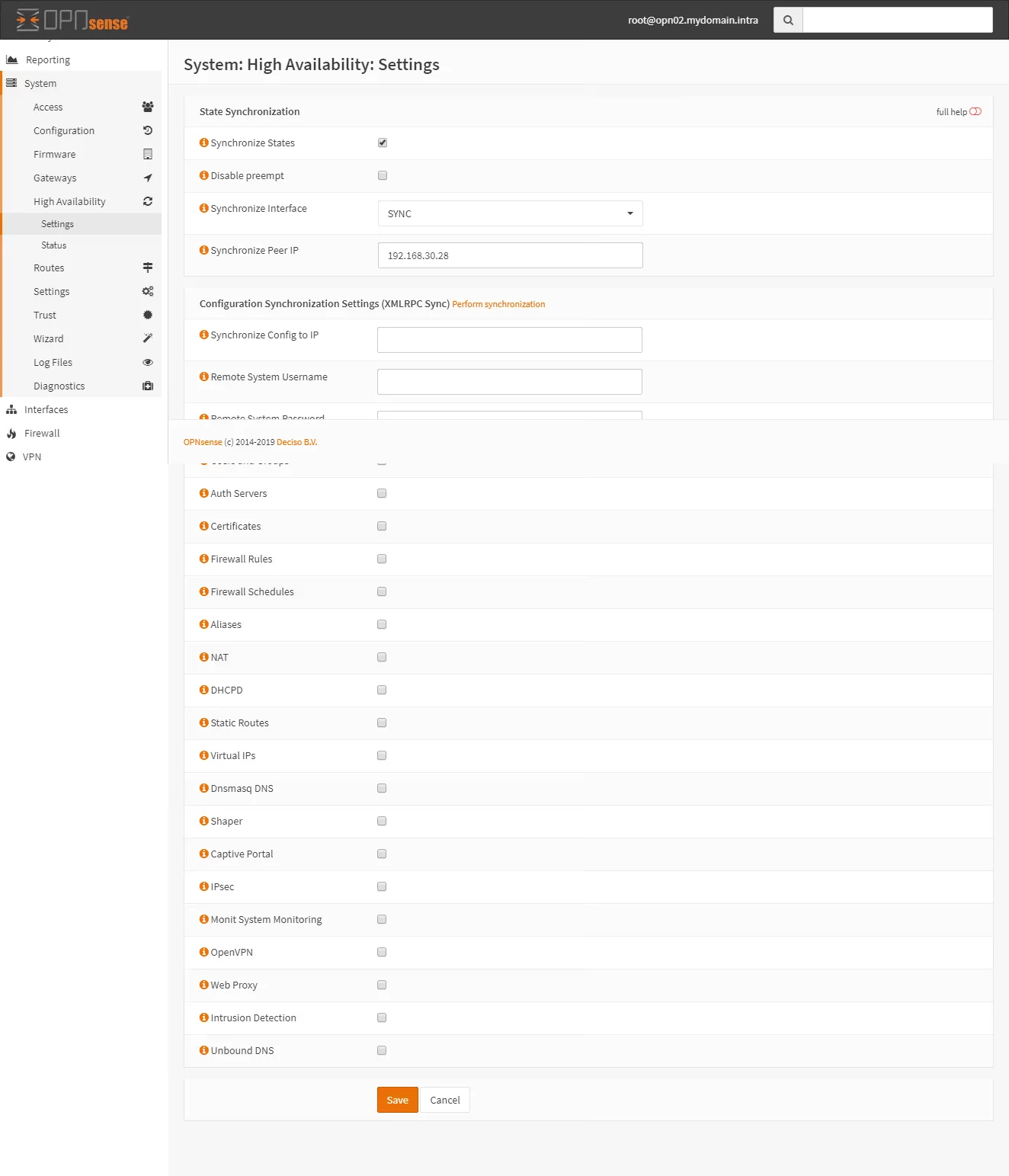

Master: Example image

Slave: Example image

Test the synchronisation. Go to System > User management and createa new user on the master node.
Then check on the slave node.

If it doesn’t work, check:

  • Are the firewall web interfaces running on the same protocols and ports?
  • Is the admin password set correctly? (User Manager > Users > admin.)
  • Are the firewall rules to allow synch set to use the correct interface (SYNC)?
  • If you’re using VMs, are the firewalls on the same internal network?

create virtual IPs

On the master node go toFirewall > Virtual IPs > Settings and click Add. Create a new VIP adres for LAN and WAN interfaces.

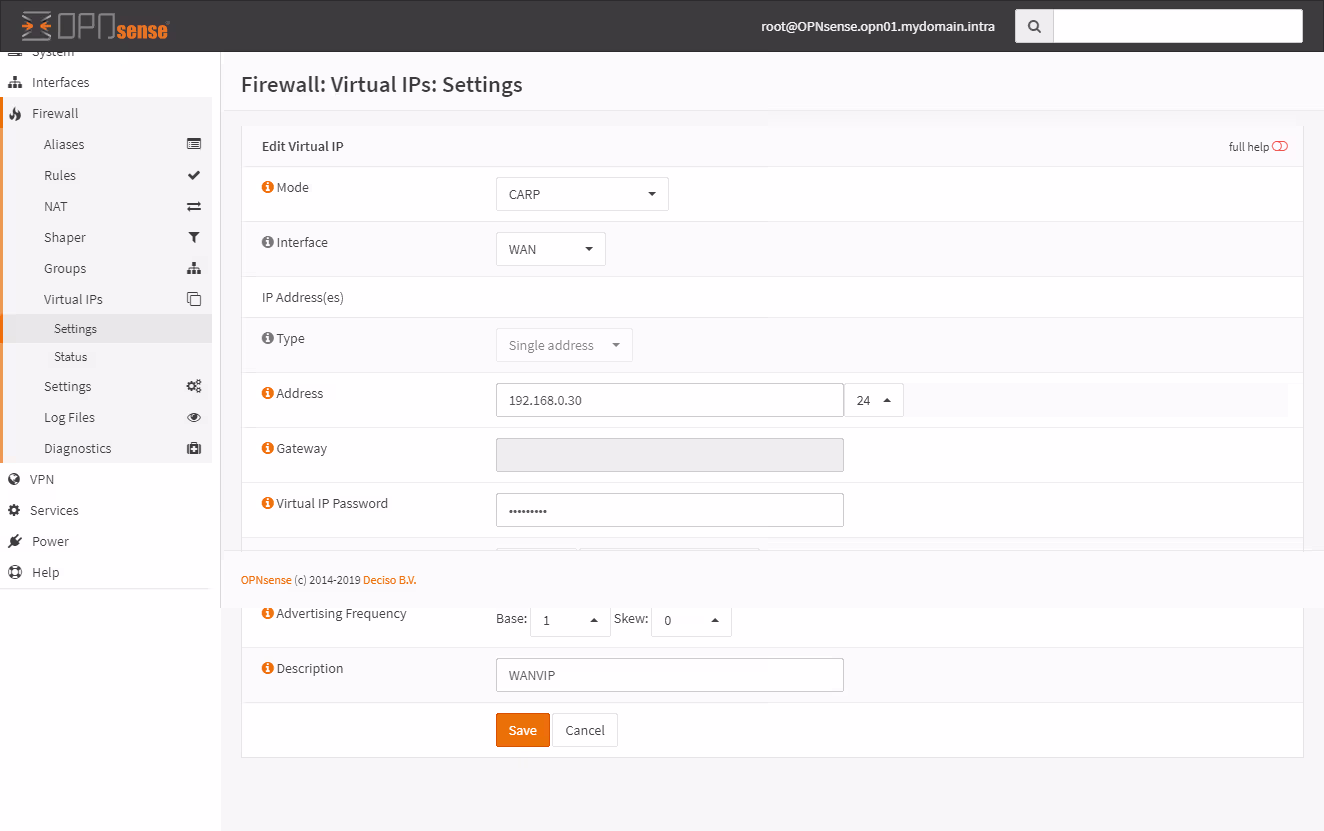

WAN VIP on master: Example image

LAN VIP on master: Example image

Change outbound NAT

Change the configuration of the outbound NAT to use the shared public IP (the WAN VIP)
Go to Firewall > NAT > Outbound and set the mode to Hybrid Outbound NAT rule generation.

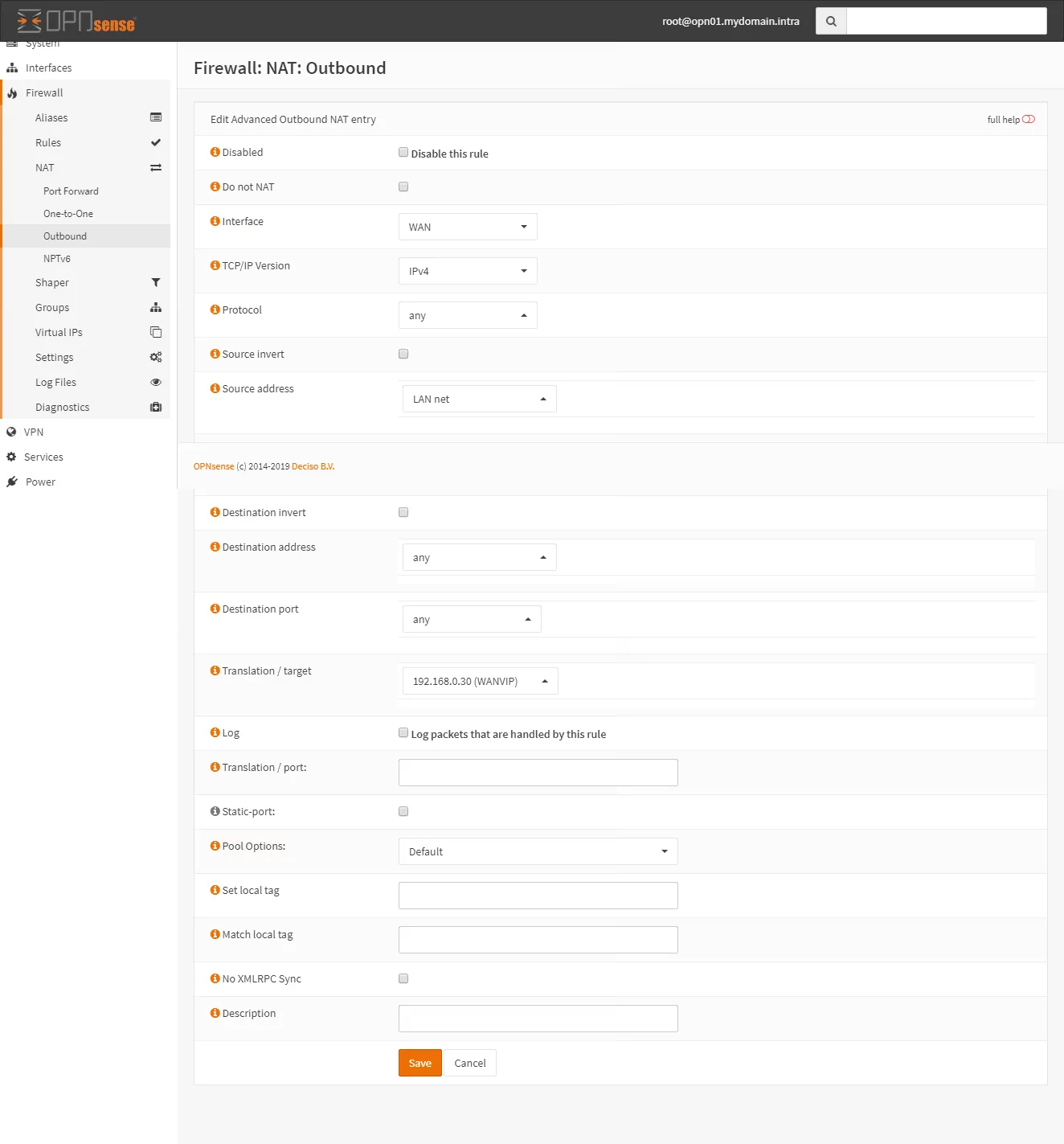

Create a new Outbound rule like this:
Example image

The translatino / target must be the WANIP IP.

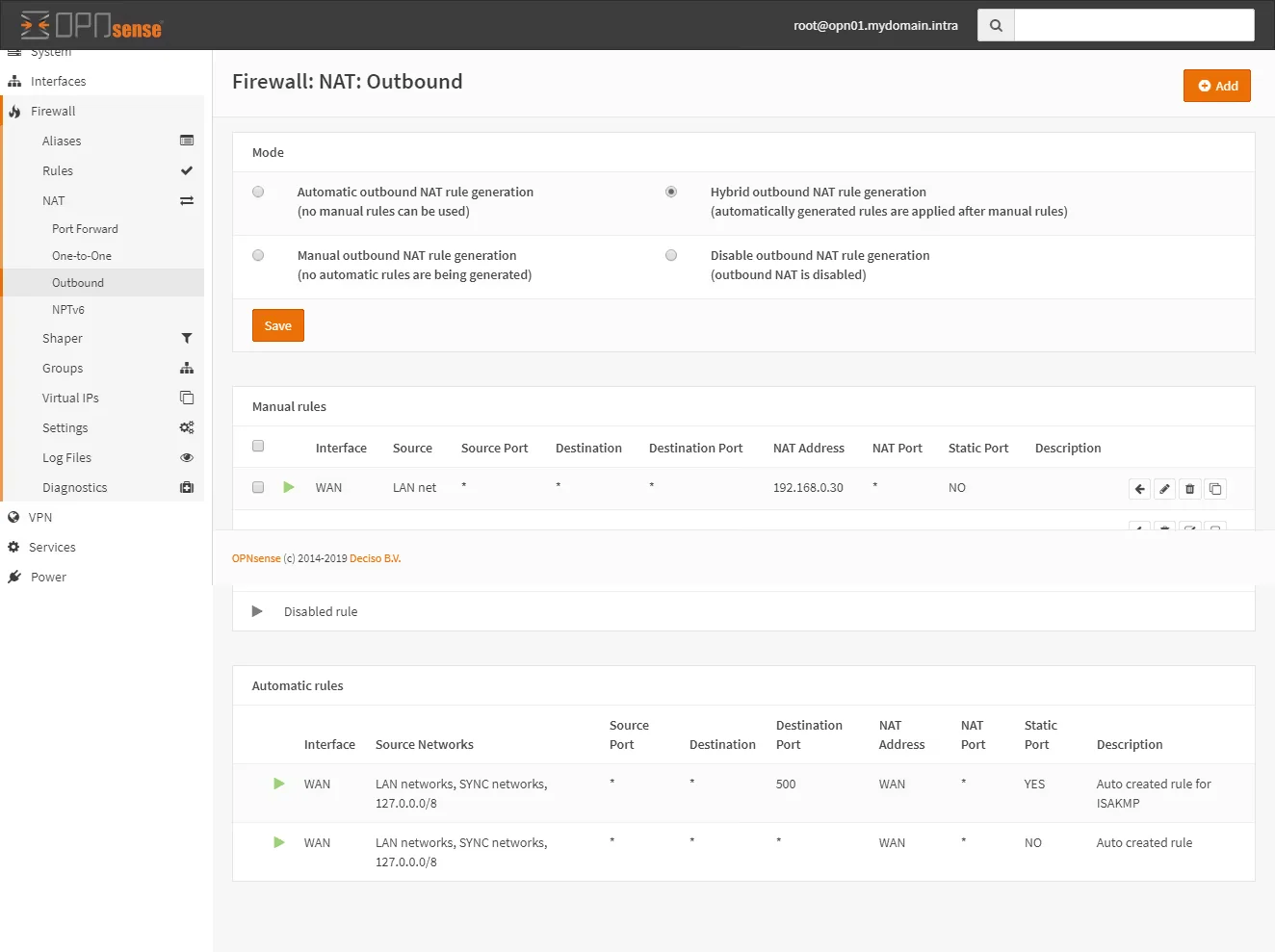

It should end up looking like this:

Example image

If you’ll be using your opnsense firewall as a DNS resolver you must change the settings of the DNS service (Services > DNS Resolver > General Settings) to lissen on the LAN VIP address. Then chnage the address of the DNS server in the DHCP configuration to us the LAN VIP adress.
