Configure OpenVPN HA opnsense cluster

Page content

In this LAB I will be creating OpenVPN SSL Peer to Peer connection.

The Architecture

 ------ WAN ------
 |               |
PF1 -- sync -- PF2
 |               |
 ----- LAN -------

WAN: 192.168.0.0/24 (Bridgelt)
LAN: 192.168.20.0/24
SYNC: 192.168.30.0/24

opn01:
WAN 192.168.0.28
LAN: 192.168.20.28
SYNC:192.168.30.28

opn02:
WAN 192.168.0.29
LAN: 192.168.20.29
SYNC:192.168.30.29

Configurate the OpeVPN service

Got to VPN > OpenVPN > Wizards Example image

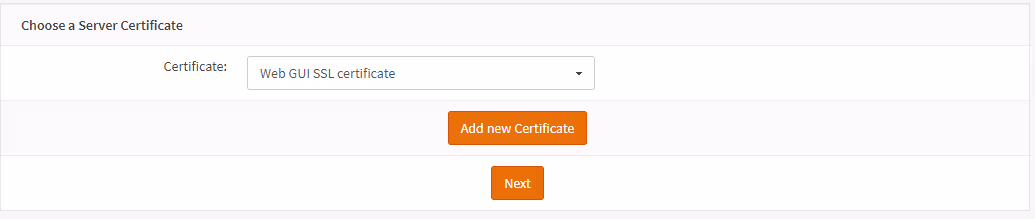

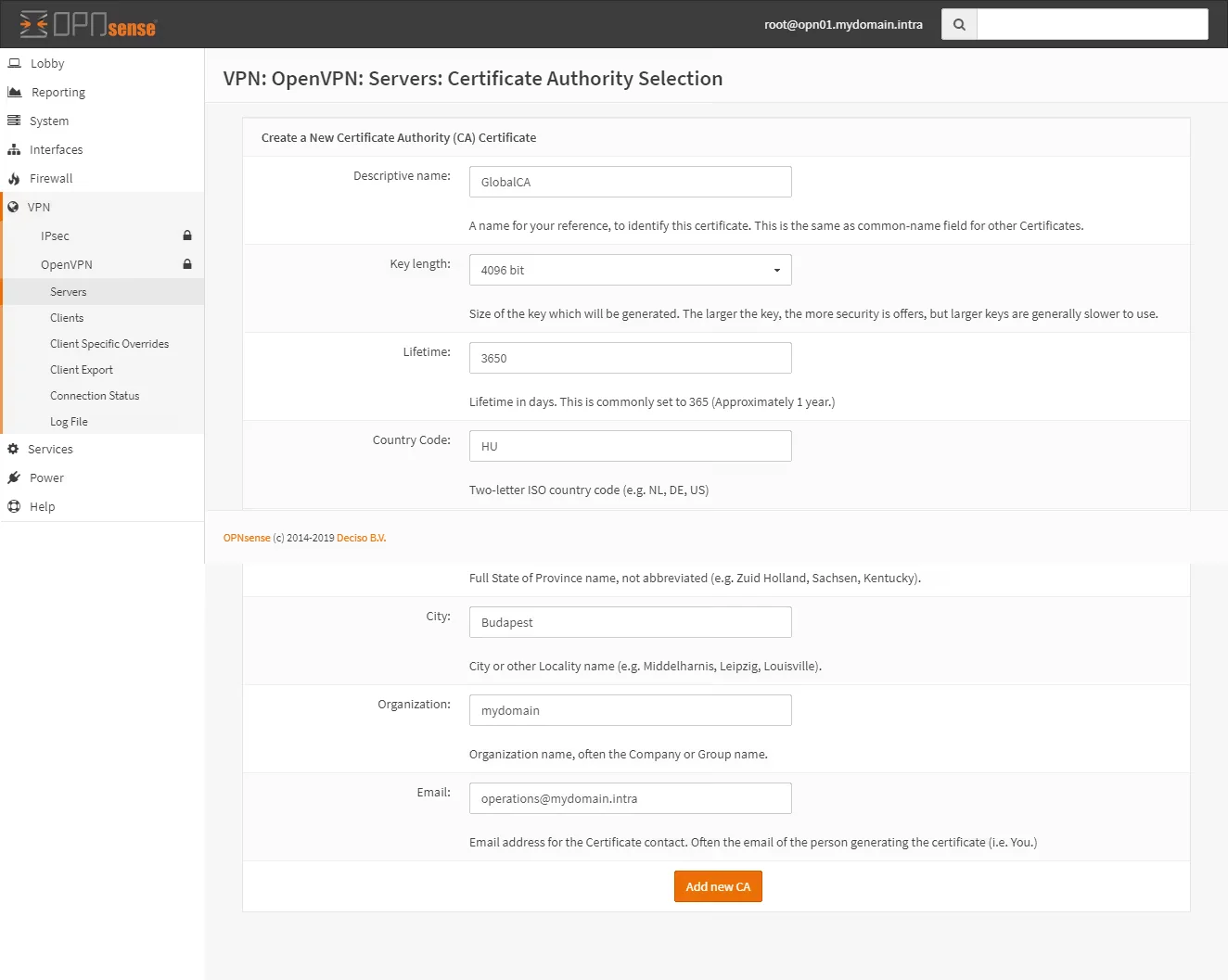

If you ulodad your certificate seledt that in the drop doew menu or select Add new Certificate to generate a new one. Example image

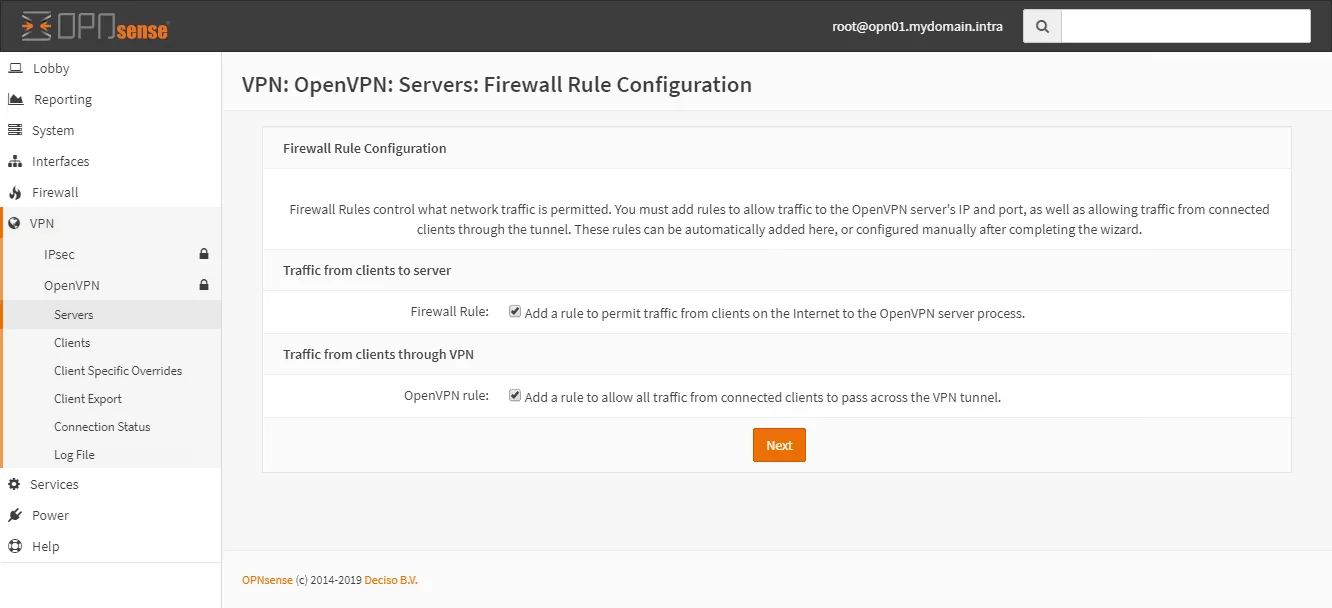

Example image

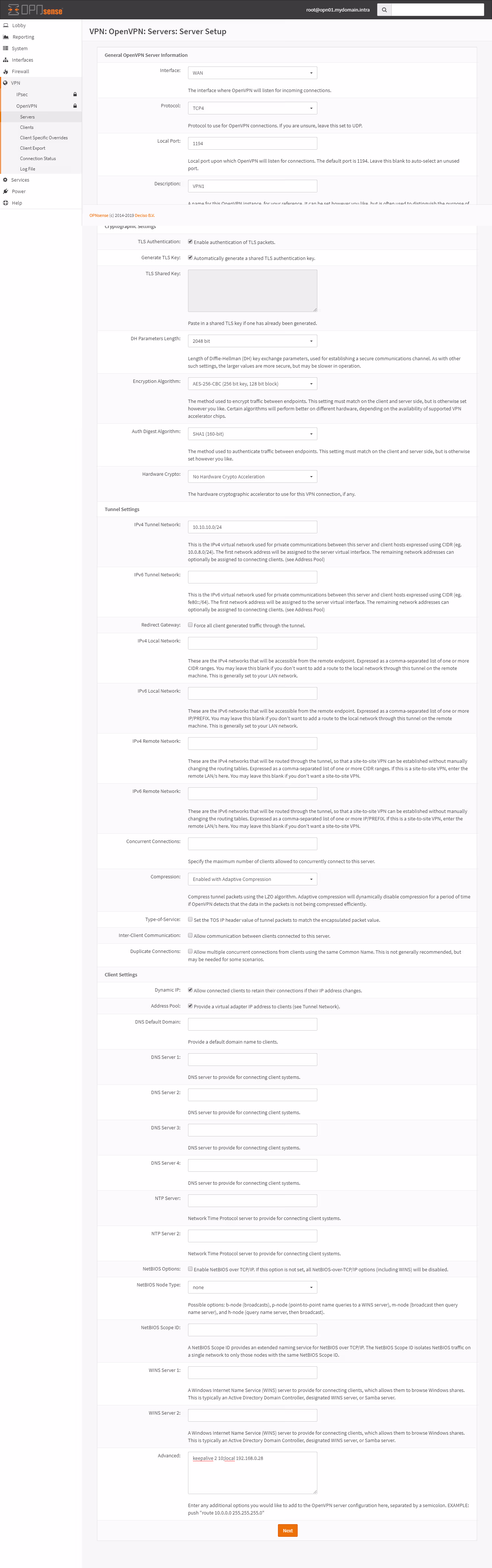

Edit the Adwanced Configuration: Example image

Example image

Example image

Configurate NAT Rules to HA

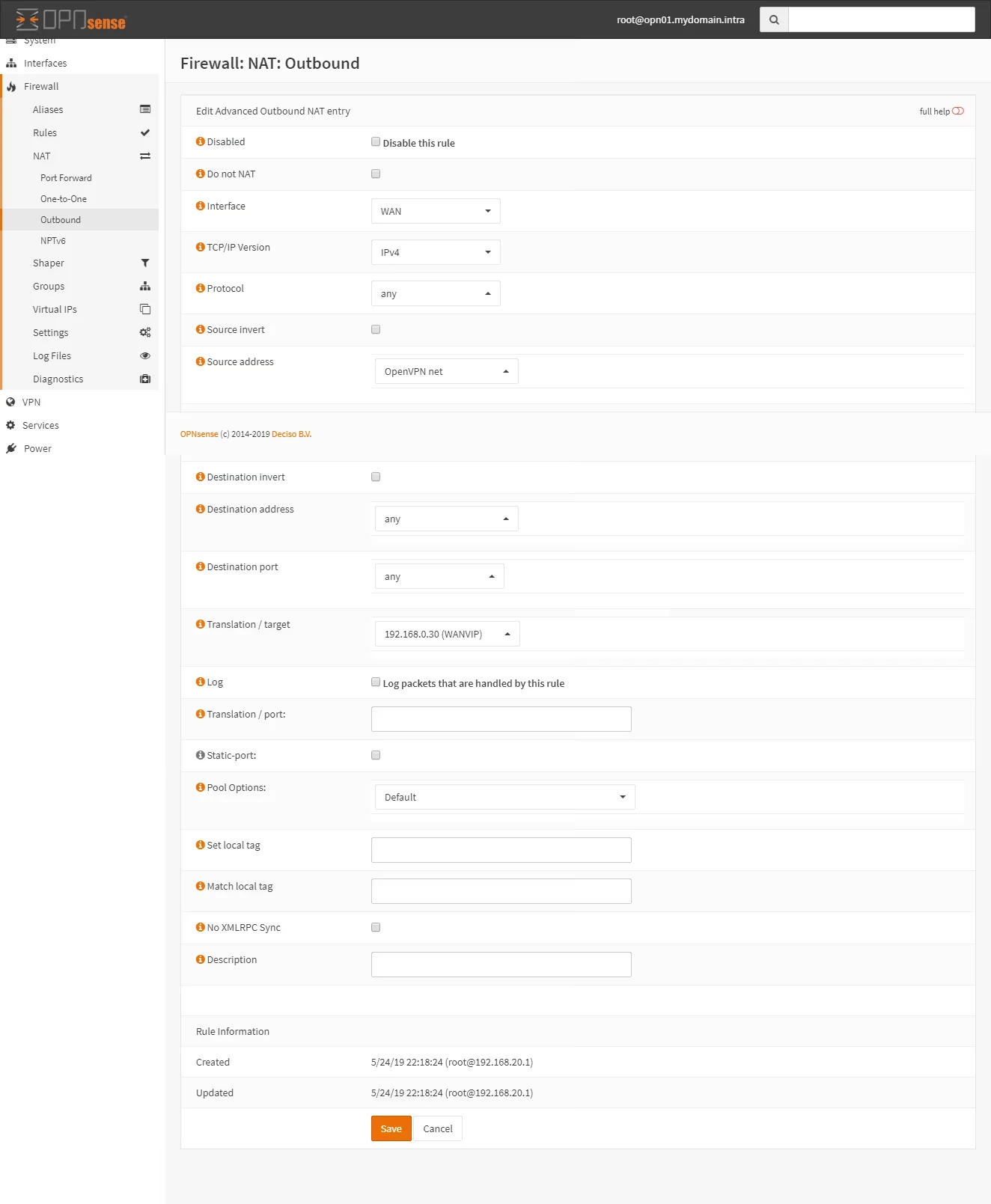

Go to Firewall > NAT > Outbound and clone the manul LAN Rule Example image

Enable Connection from OpenVPN to master and slave

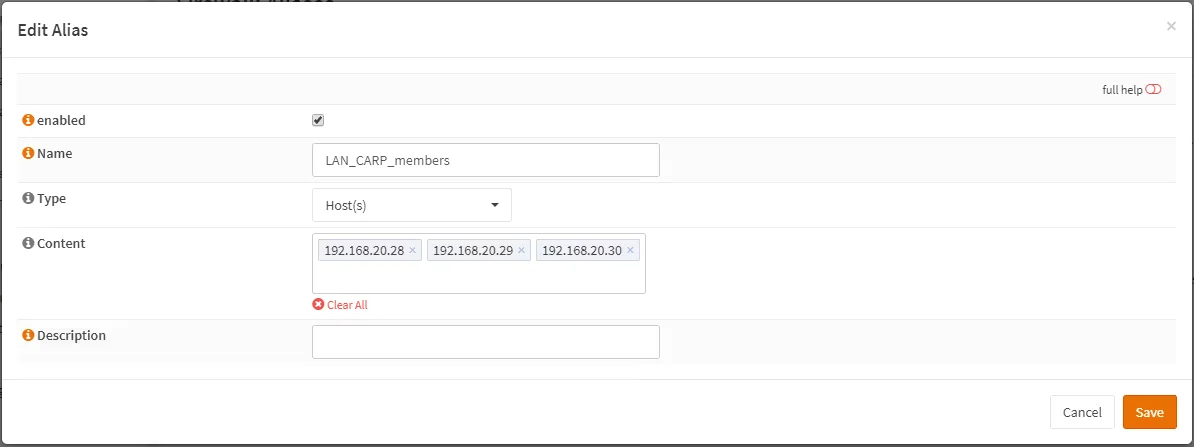

In default there in no rout to the salve nod. Go to Firewll > Aliases > Add and create alias for CARP members: Example image

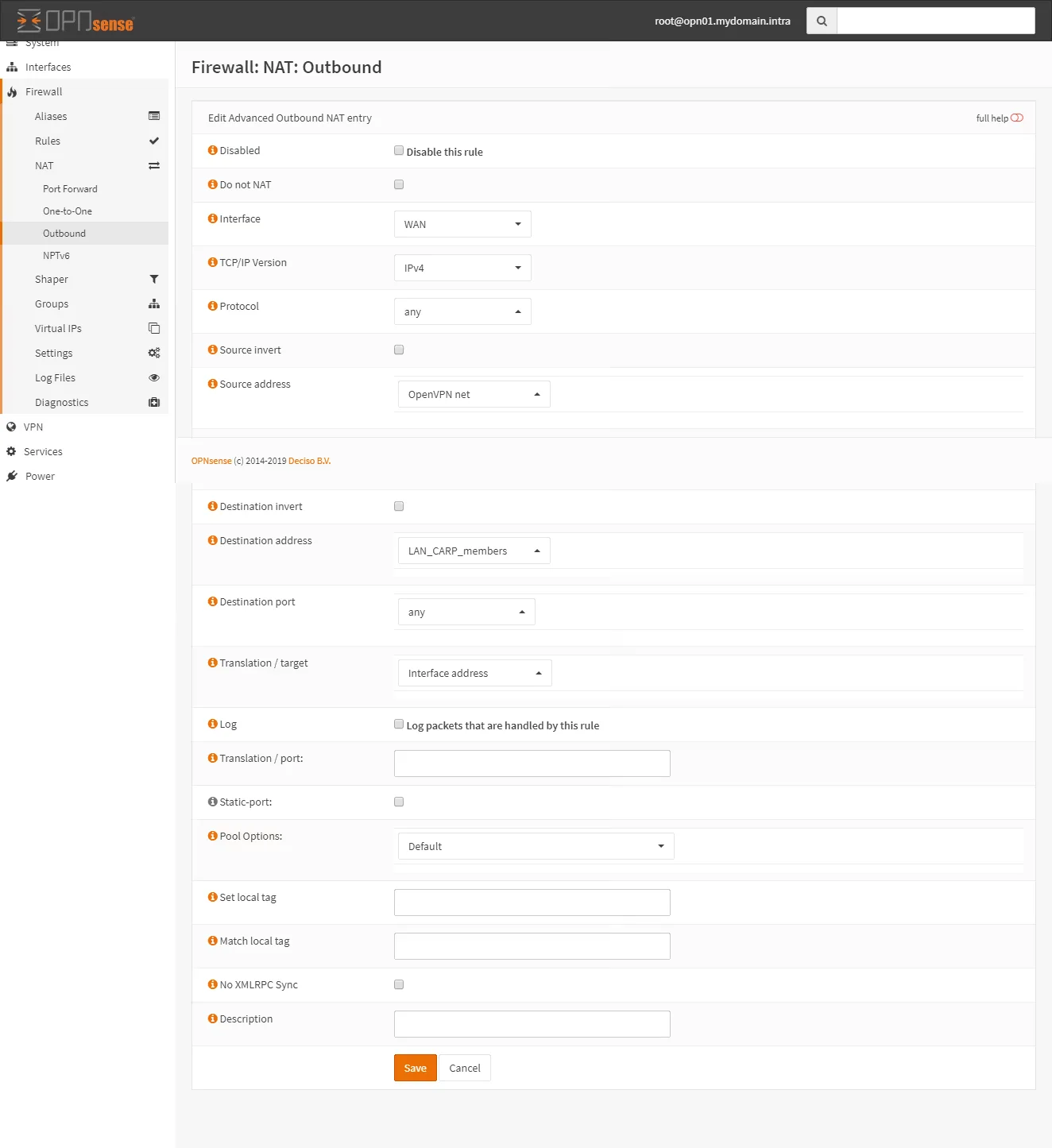

Then go back to Firewall > NAT > Outbound > Settings and create a new rule: Example image
