Configure OpenVPN HA pfsense cluster

April 11, 2019

Page content

In this LAB I will be creating OpenVPN SSL Peer to Peer connection.

Generating CA Certificate

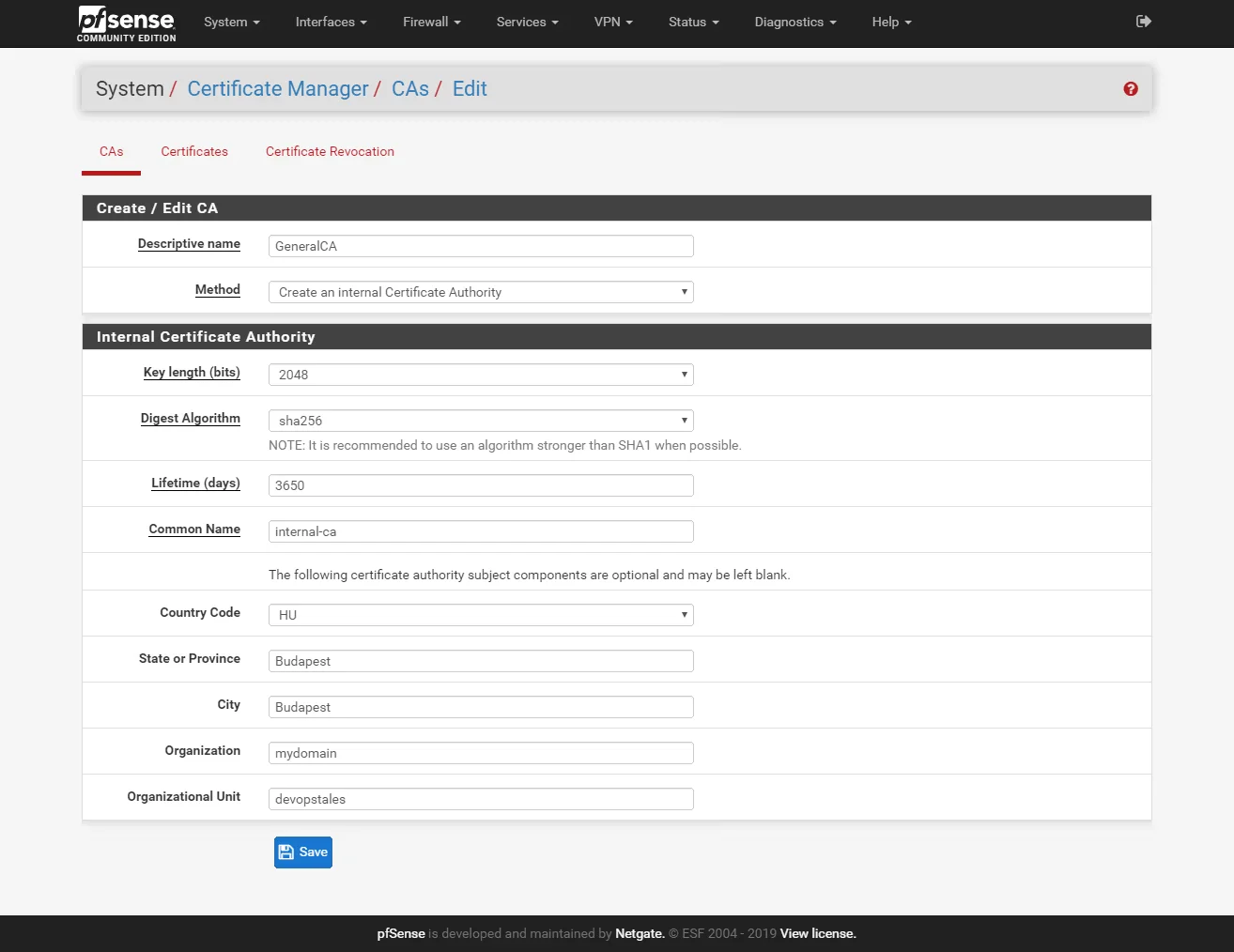

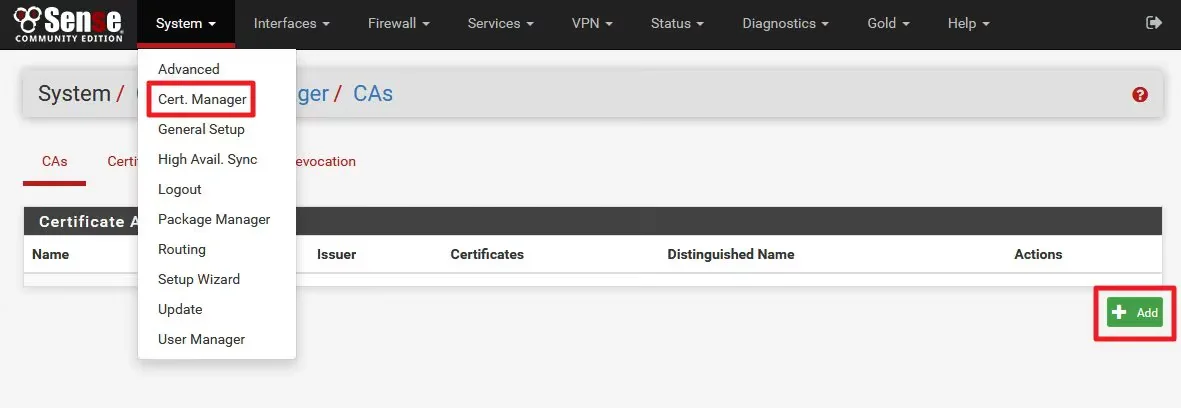

At System > Cert.Manager > CAs > Add Example image

Example image

Generate Server Certificate

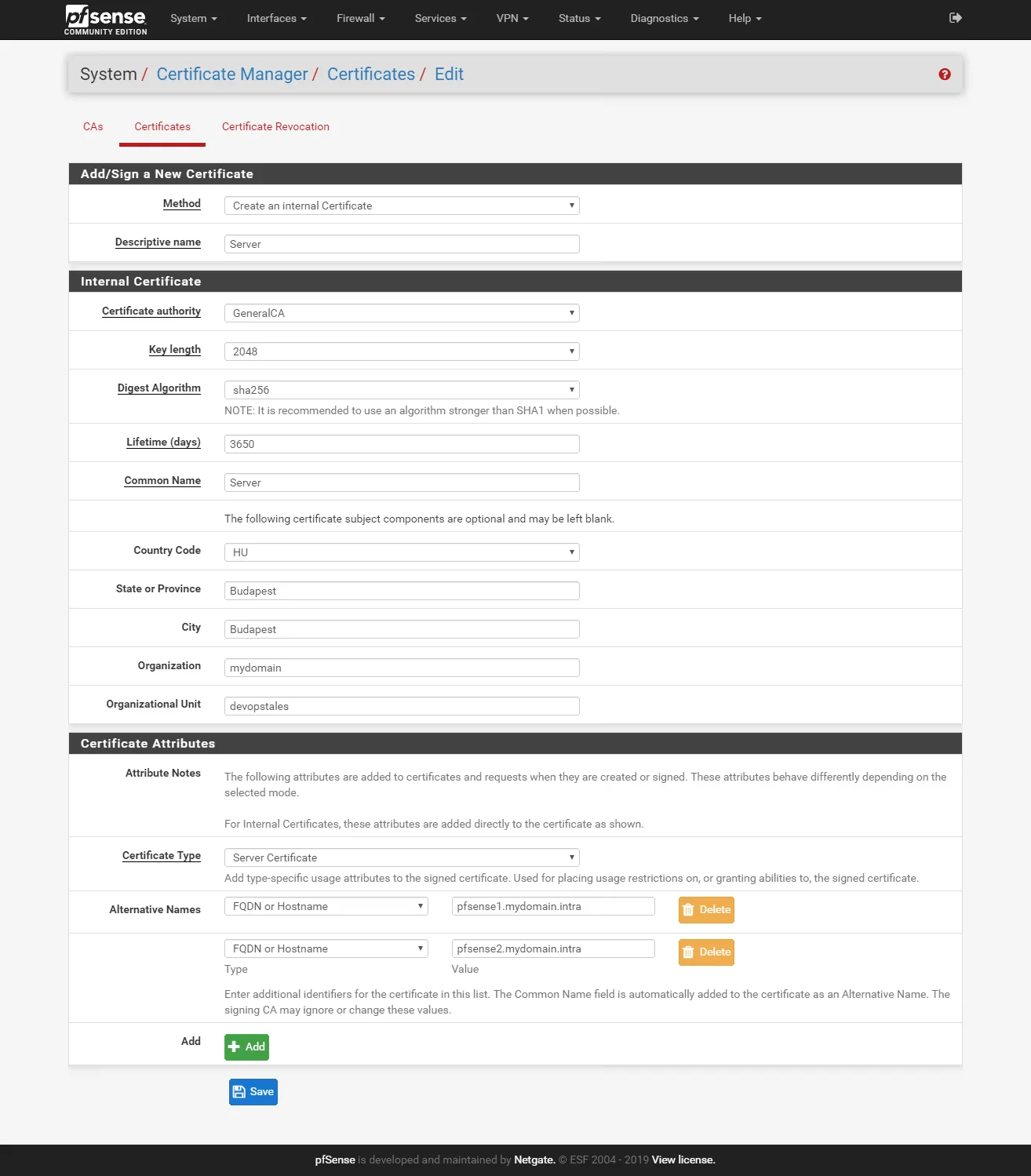

At System > Cert.Manager > Certificates > Add Example image

Generate User Certificate

For this demo I will’create one certificate for all users, but in live you should create a separate certificate for all users.

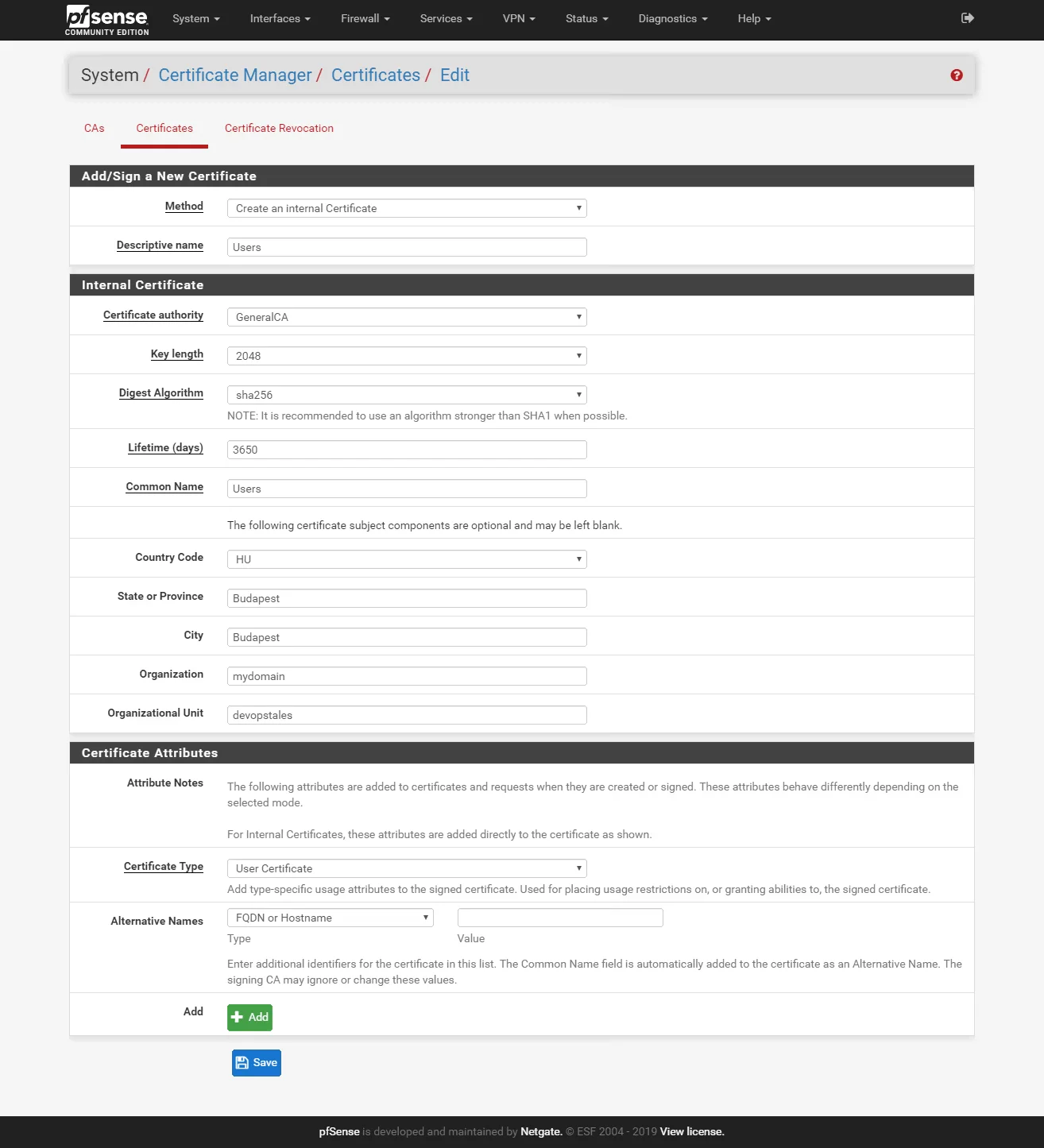

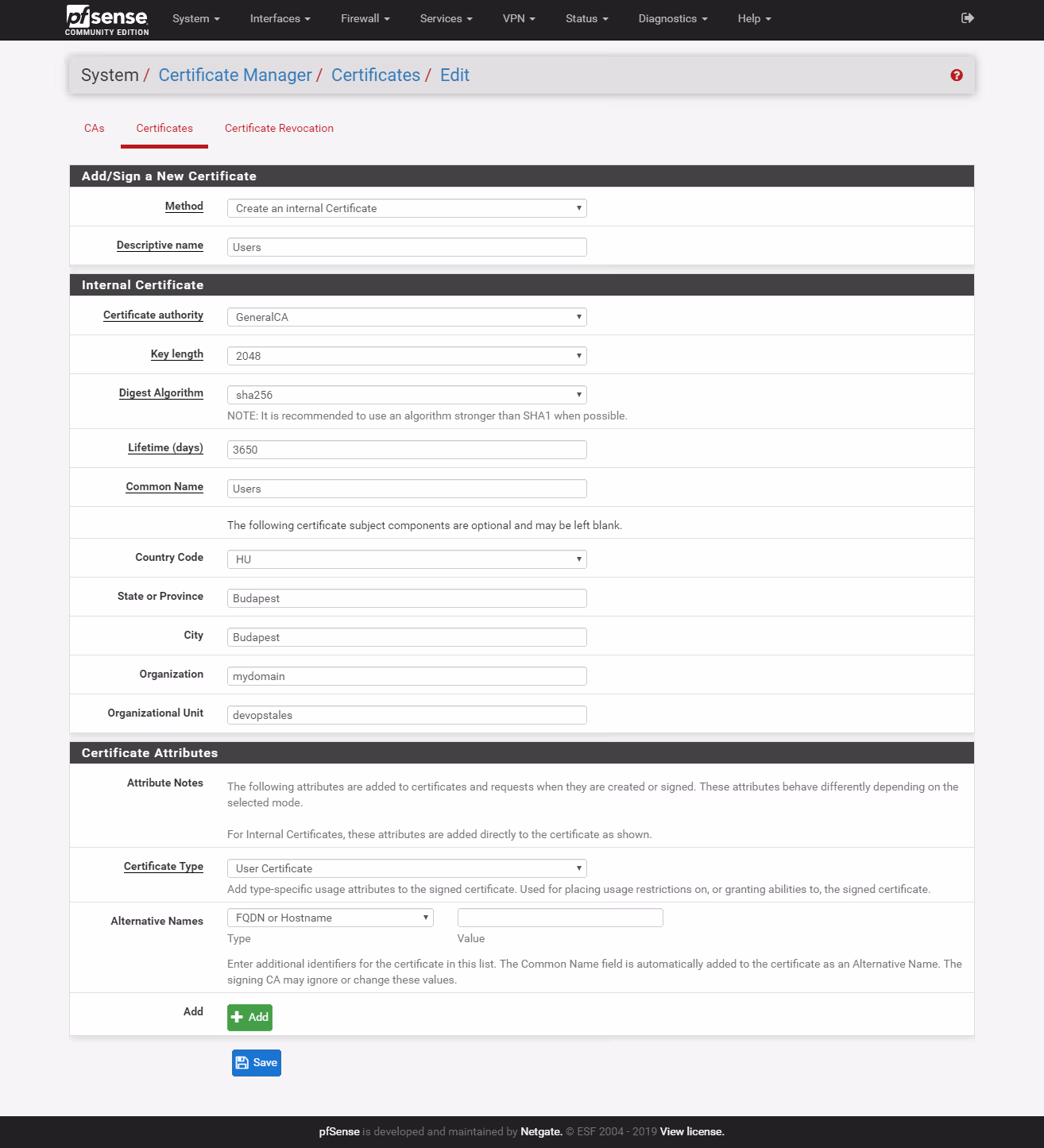

At System > Cert.Manager > Certificates > Add Example image

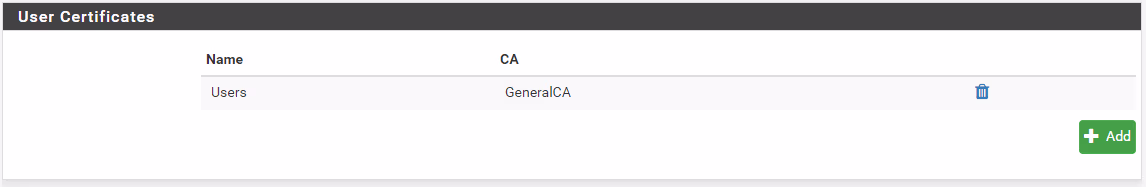

At SystemUser > ManagerUsers add the User certificate for the users. Example image

Intall Openvpn package exporter

Got to System > Package Manager > Available Packages and install openvpn-client-export plugin.

Configurate the OpeVPN service

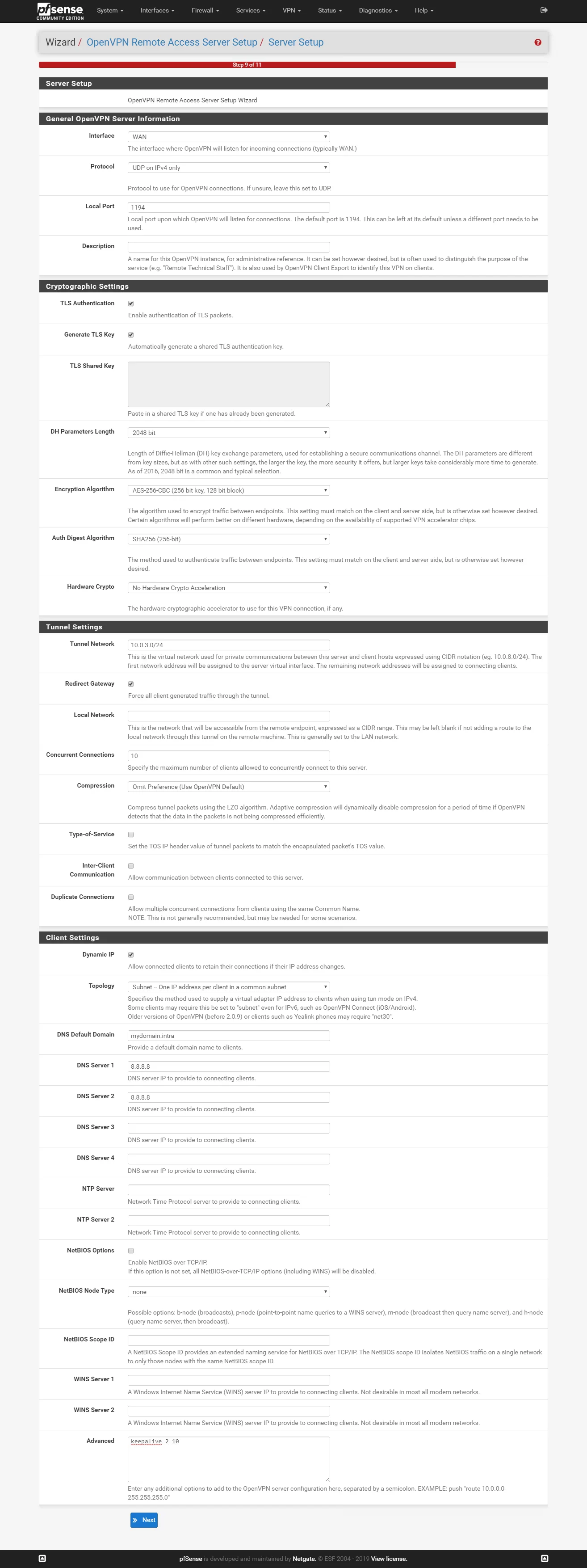

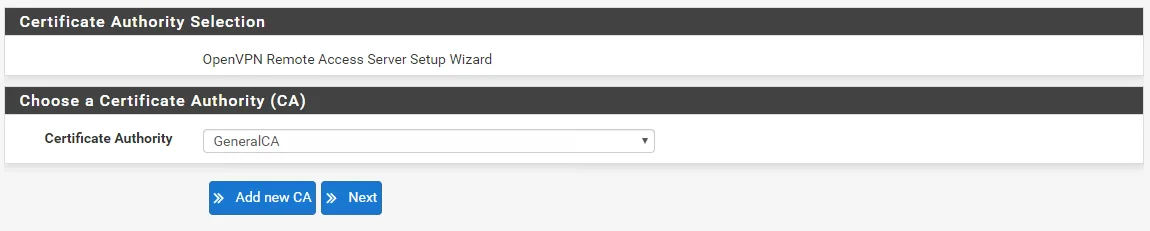

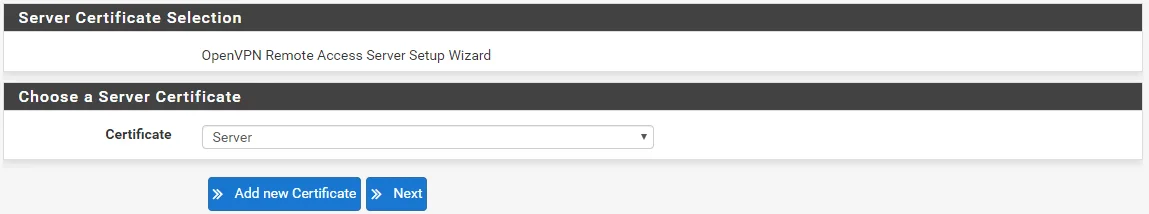

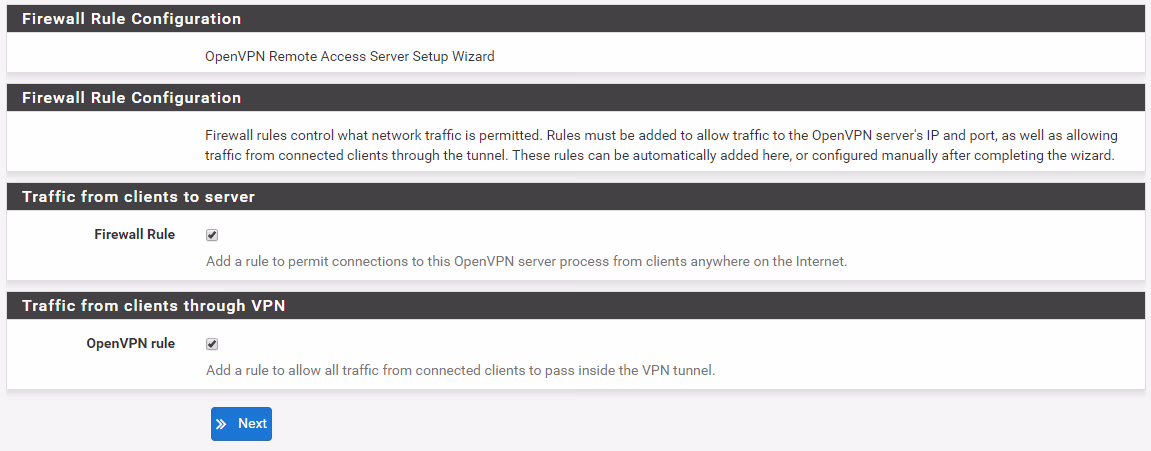

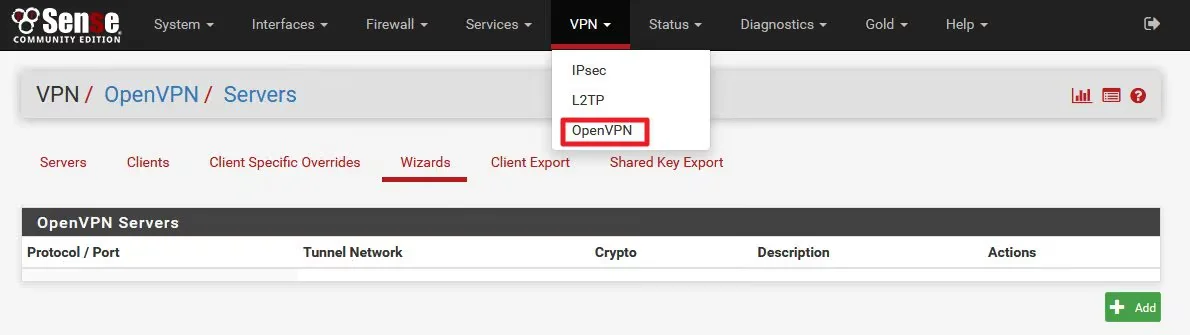

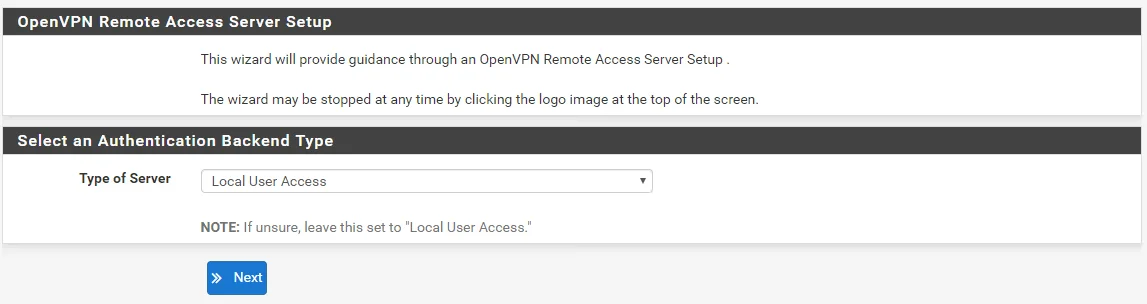

Got to VPN > OpenVPN > Wizards Example image

Example image

Example image

Example image

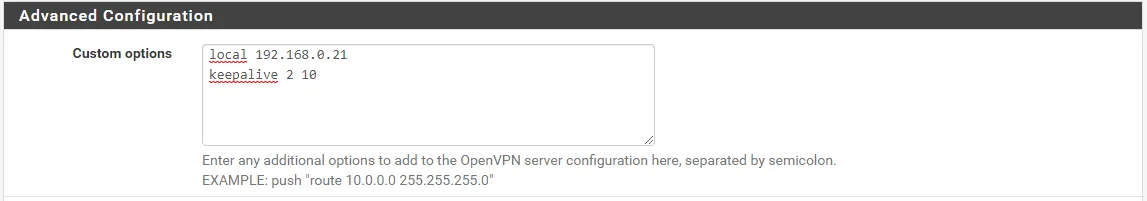

Edit the Adwanced Configuration: Example image

Example image

Example image

Configurate NAT Rules to HA

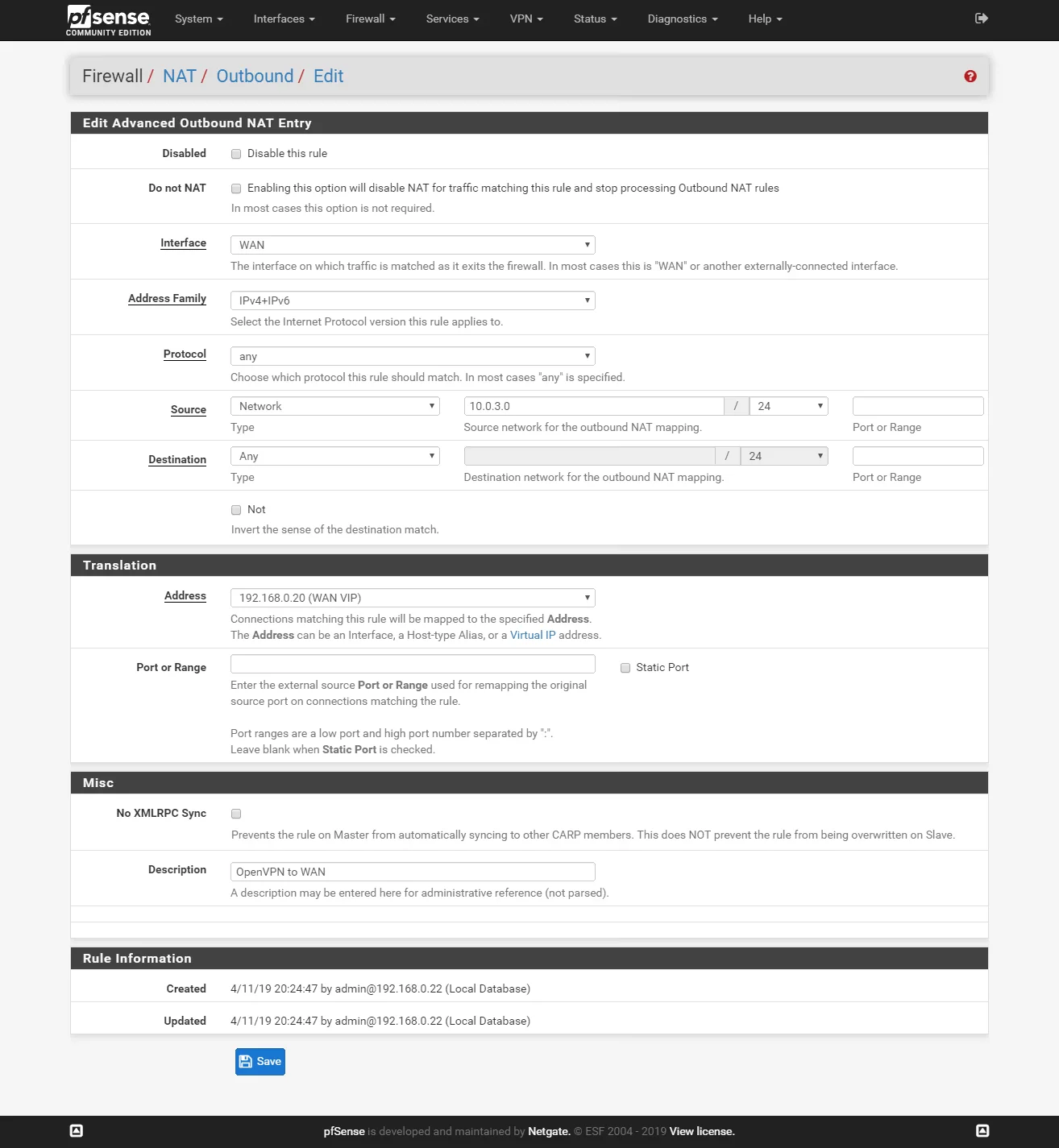

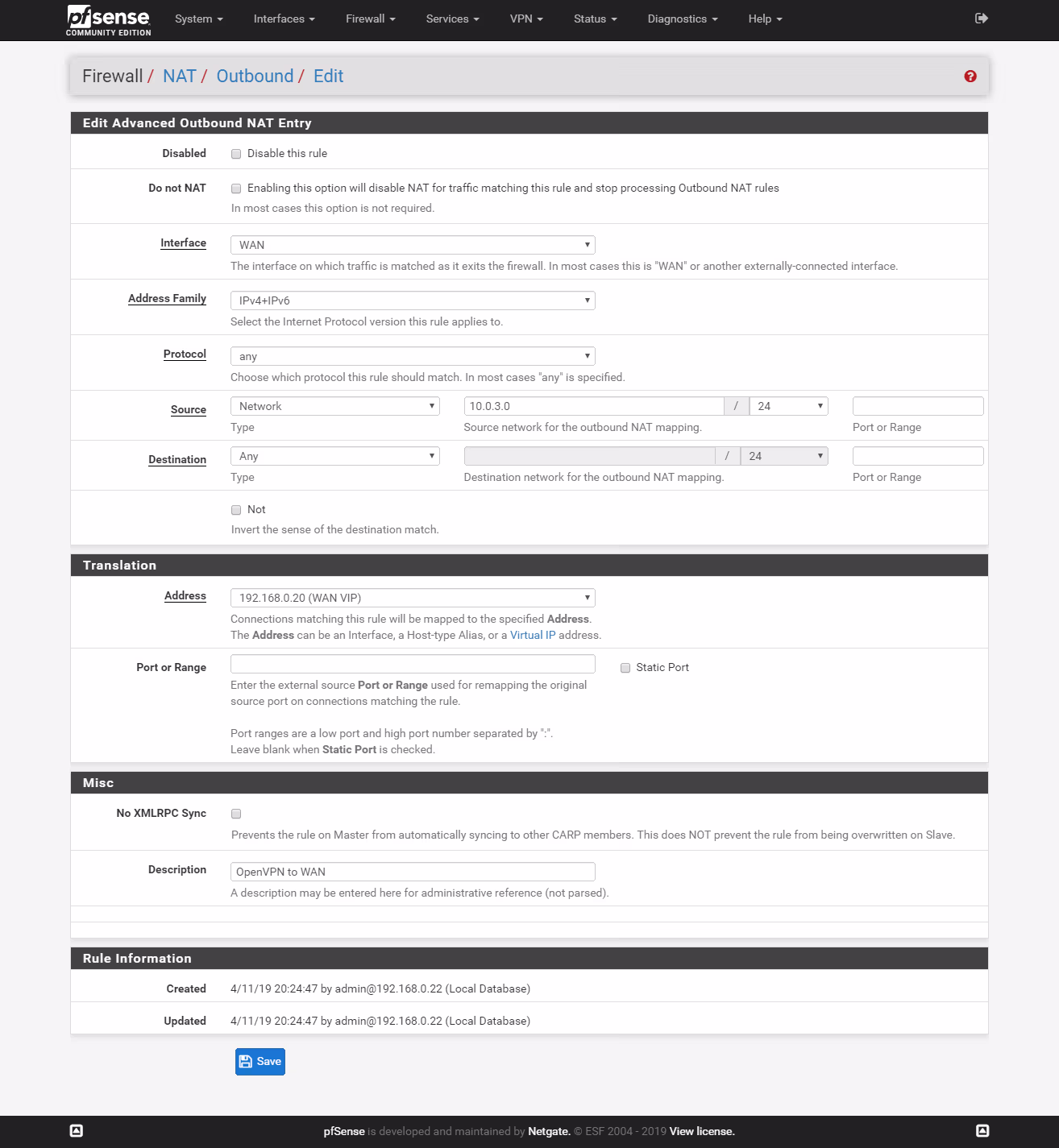

Go to Firewall > NAT > Outbound and clone the LAN Rules? Example image

Example image

Example image

Example image

Enable Connection from OpenVPN to master and slave

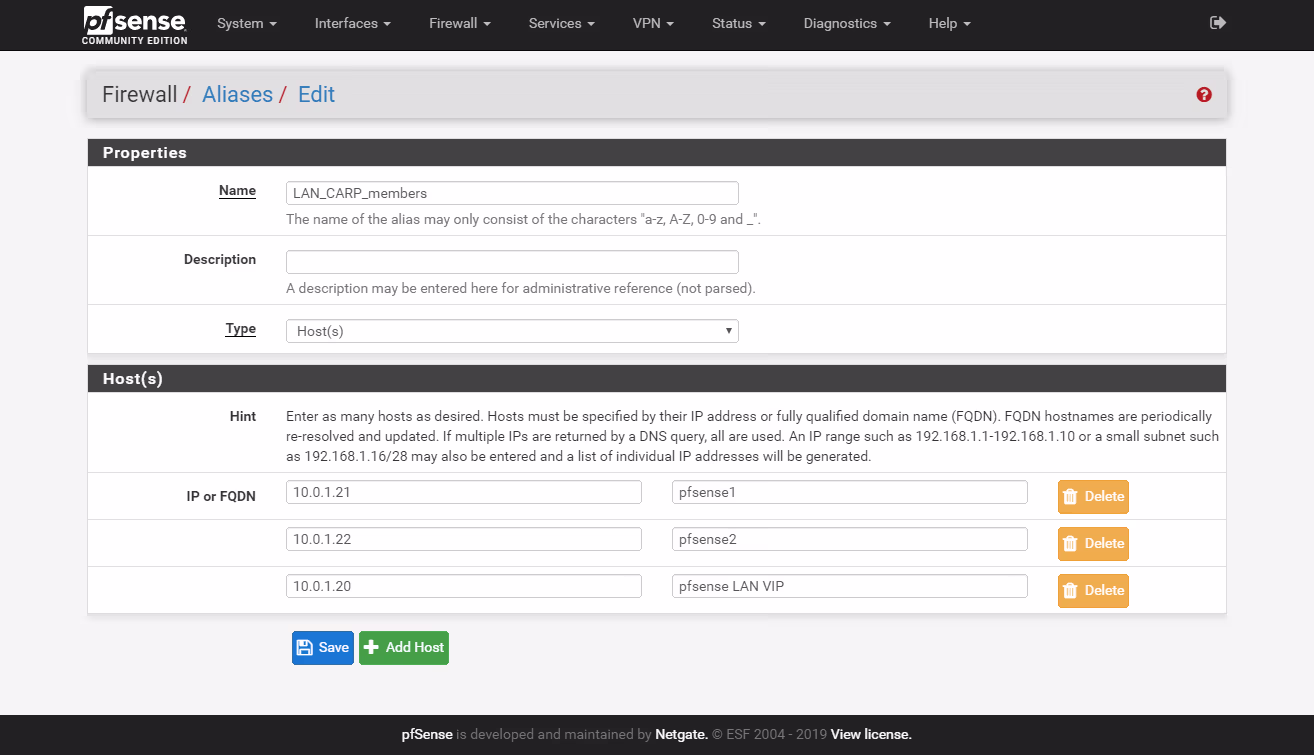

In default there in no rout to the salve nod. Go to Firewll > Aliases > Add and create alias for CARP members: Example image

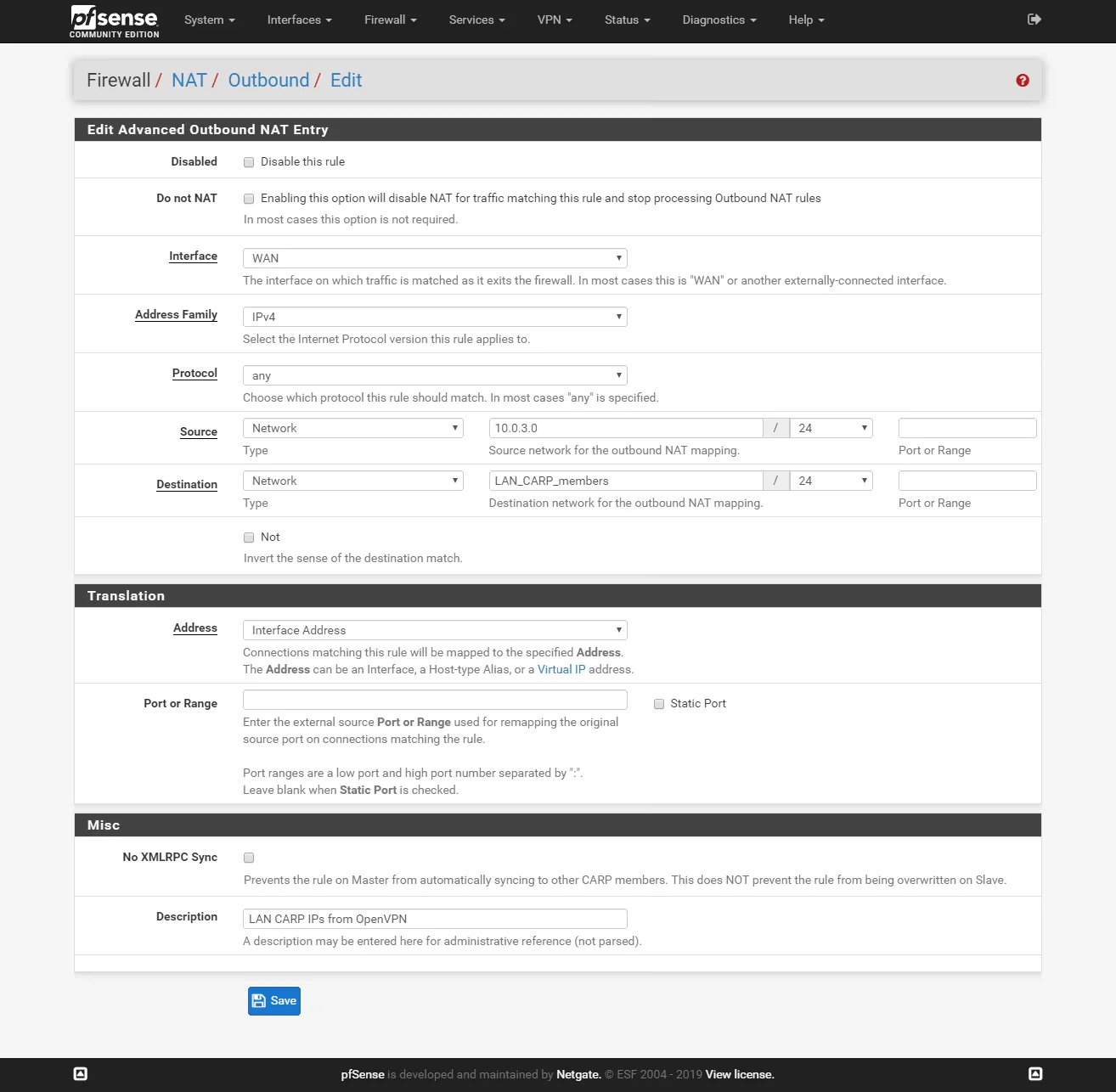

Then go back to Firewall > NAT > Outbound and create a new rule: Example image
