WAN failower on pfsense

Page content

In this pos I’ll create a WAN failower configuration.

The Architecture


------- WAN1 ------
| ----- WAN2 ---- |
| |             | |
PF1 -- sync -- PF2
 |               |
 ----- LAN -------


WAN1: 192.168.0.0/24 (Bridgelt)
LAN: 10.0.1.0/24
SYNC: 10.0.2.0/24
WAN2: 10.0.4.0/24

Configurate WIP for WAN2

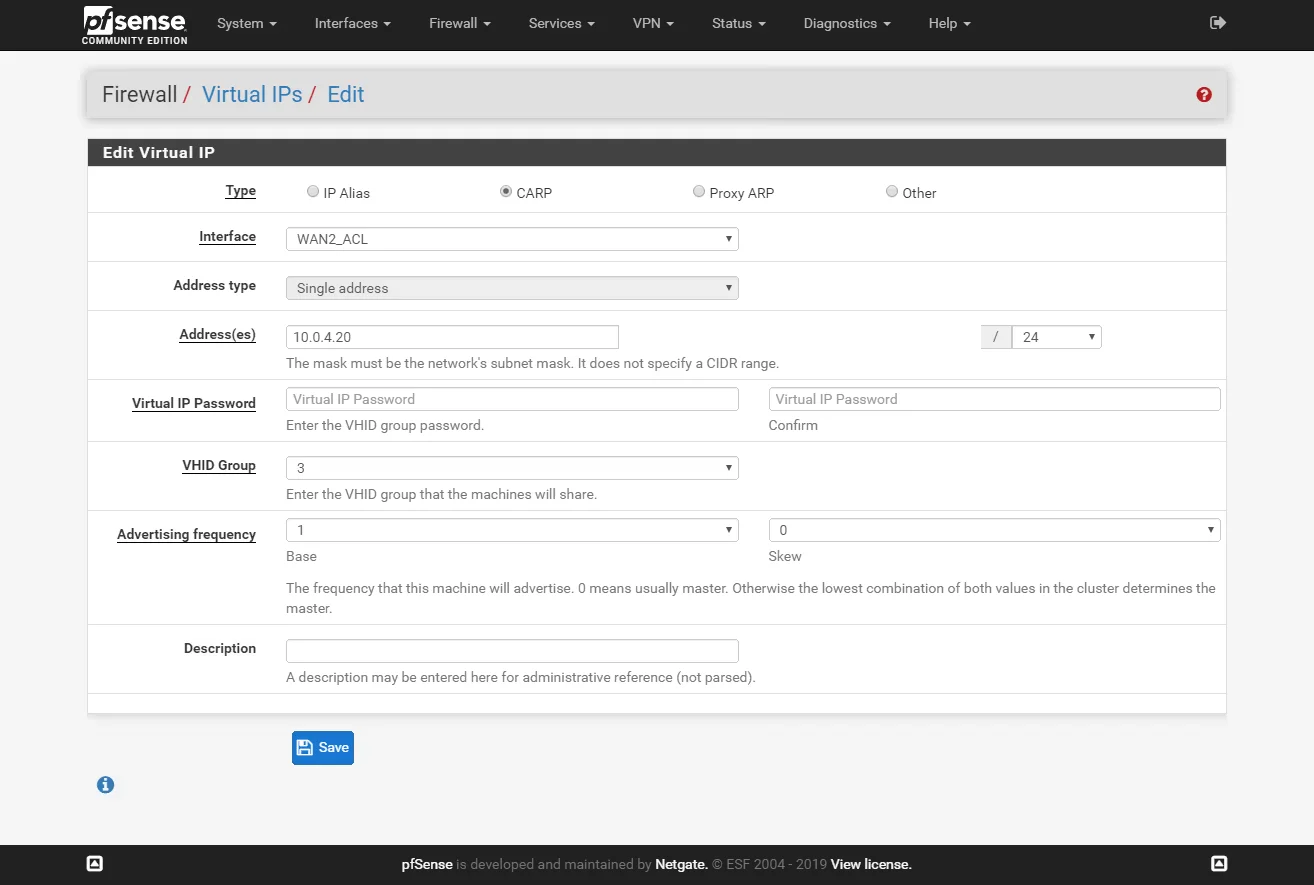

At Firewall > Virtual IPs > Add Example image

Add Gateway for WAN interfaces

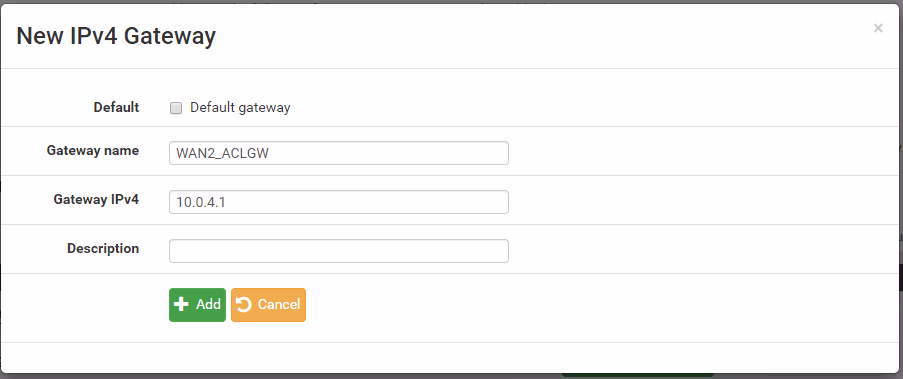

At System > Routing > Add Example image

Configuring Monitor IP

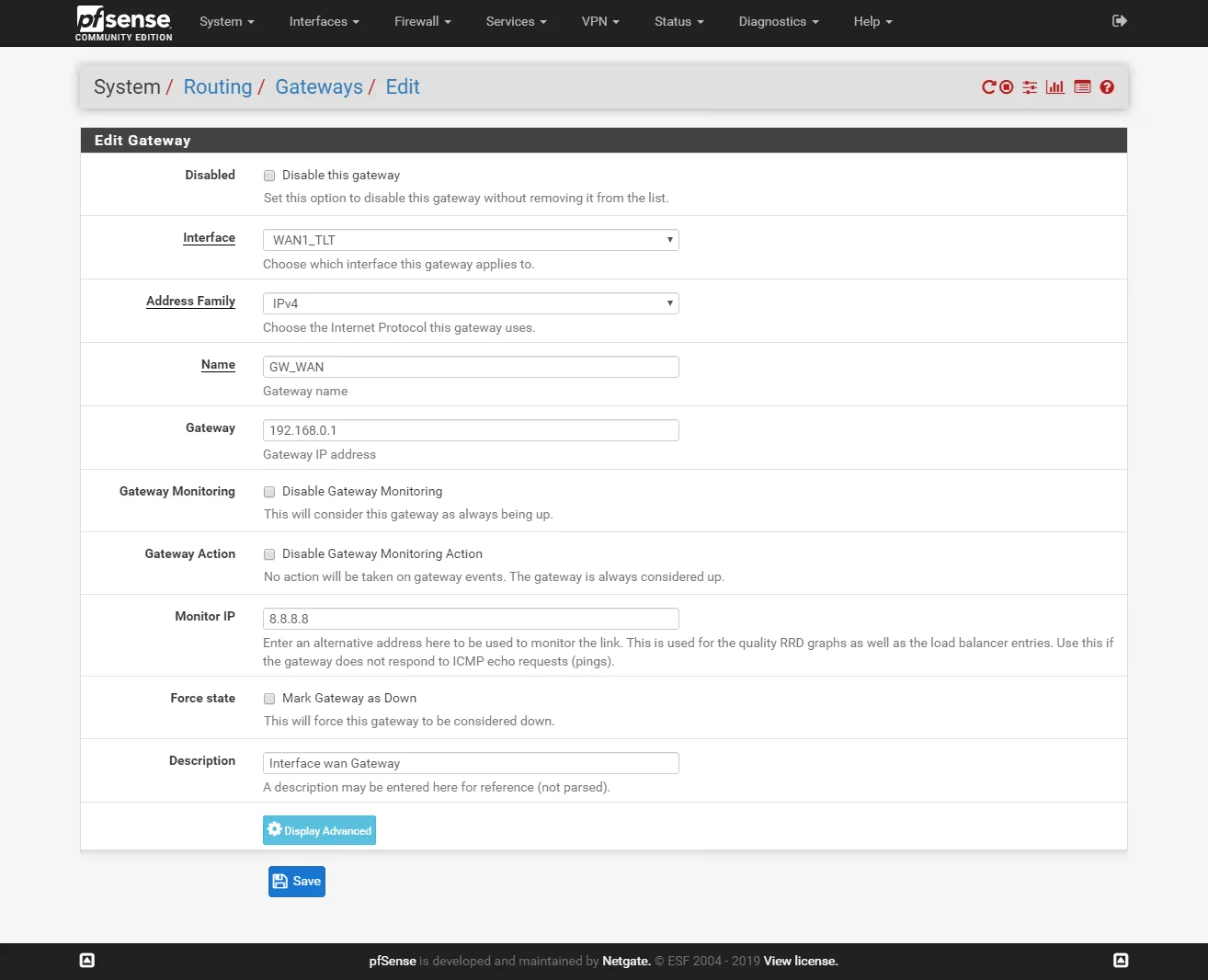

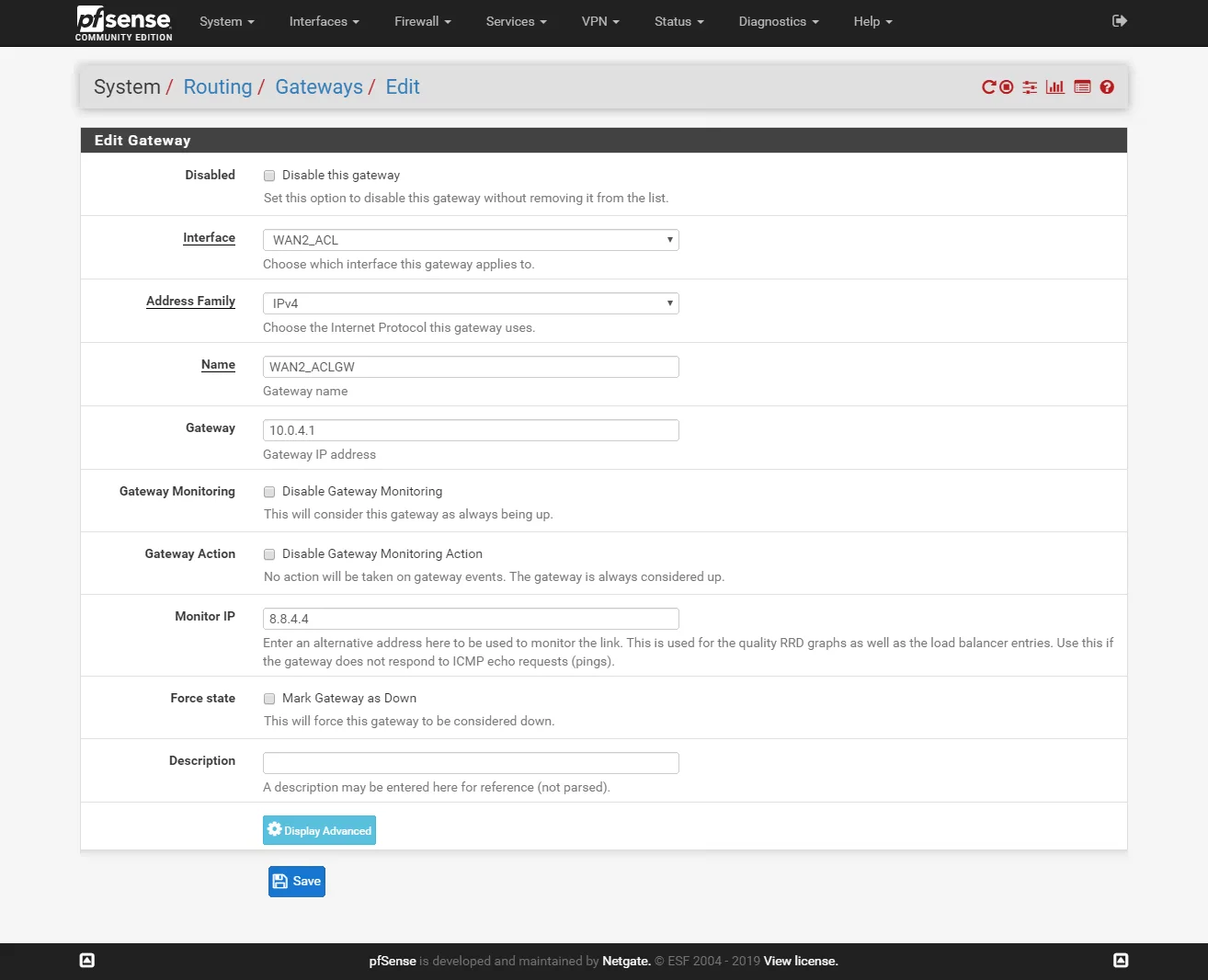

AtSystem > Routing > Edit gateways and add google dns ad monitoring ip Example image

Example image

Configuring Gateway Group

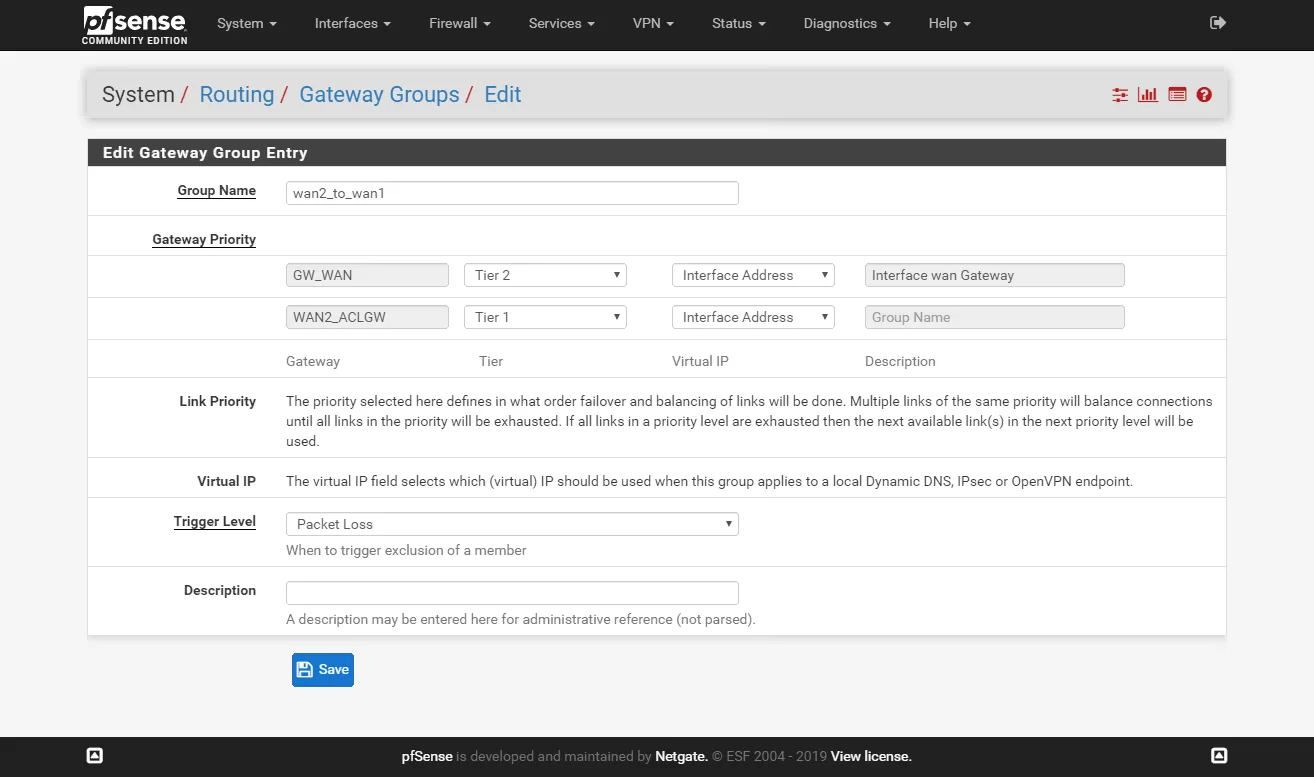

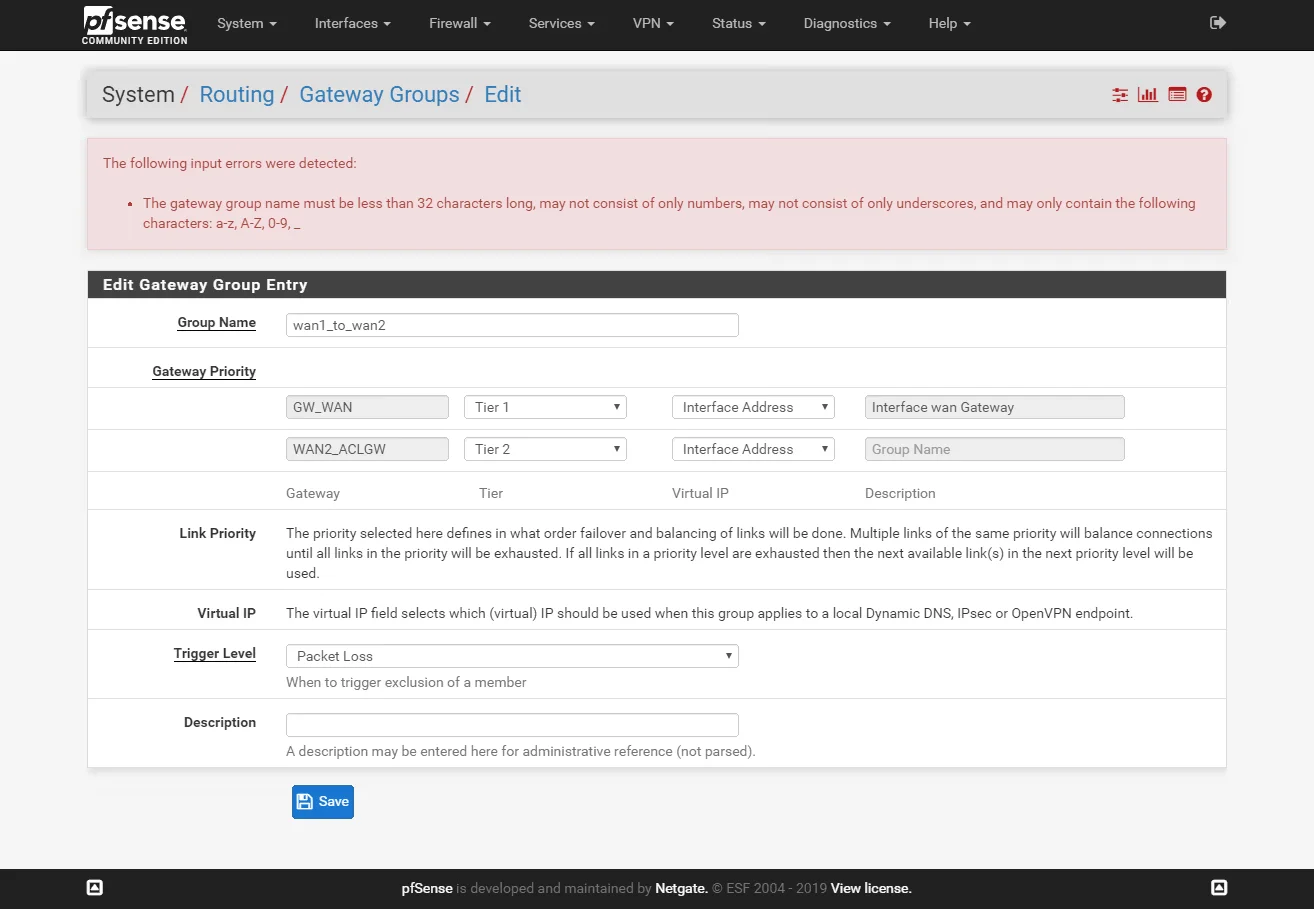

AtSystem > Routing > Gateway Groups Create 3 Groups Example image

Example image

Example image

Configuring Firewall Rules

Got to Firewall > Rules > LAN and edit the IPv4 rule. Chane the Gateway

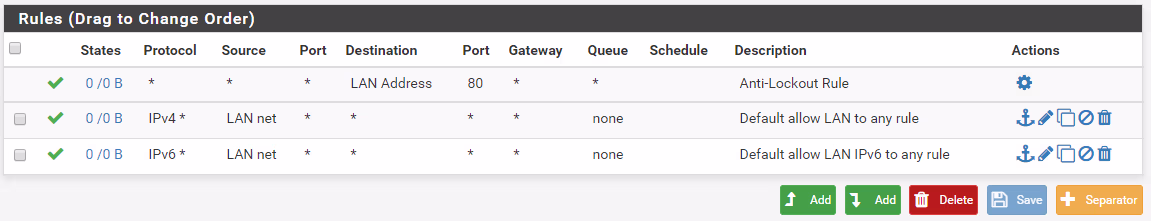

Example image

Example image

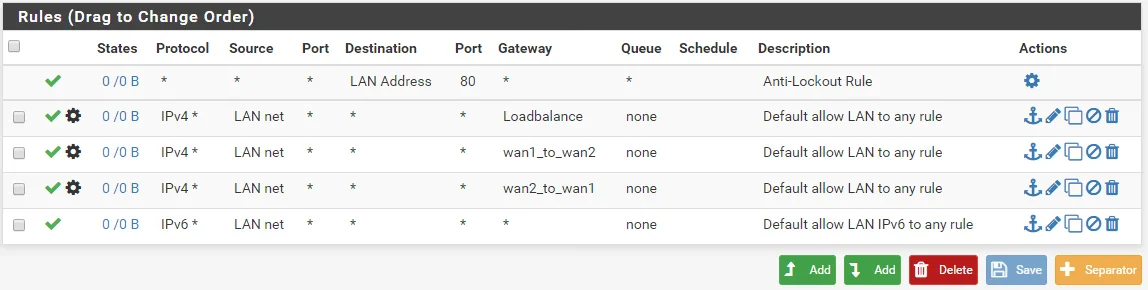

Clone the changed roles to two other rules and change the Gateway to the other Gateway Groups. Example image

Configurate NAT

Go toFirewall > NAT > Outbound

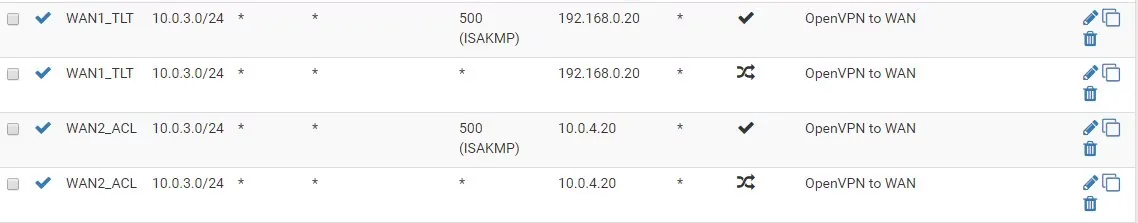

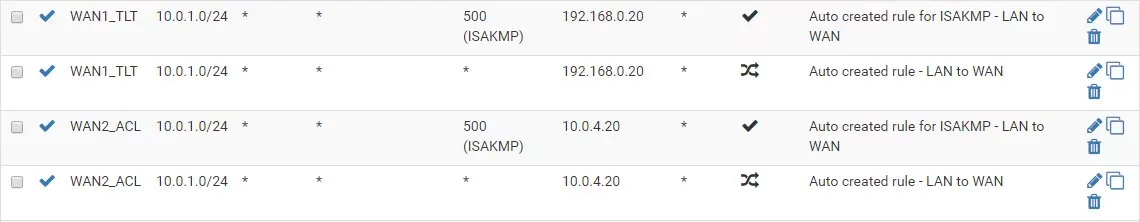

Clone WAN1 rules and edit them to WLAN2 Example image

Example image

pfSense email notification when WAN connection goes down

Go to System > Advanced > Notifications

Example with Google Gmail SMTP

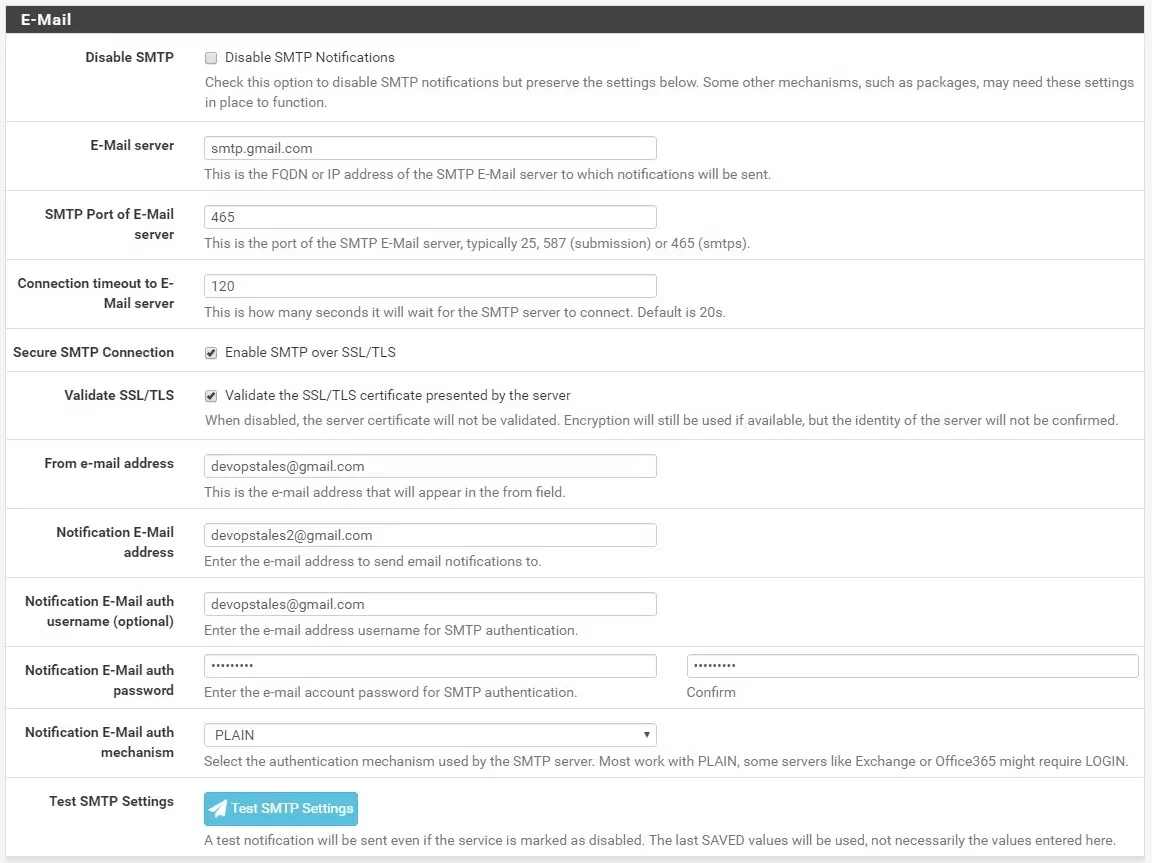

Example image
