Nextcloud SSO

Page content

Nextcloud is a suite of client-server software for creating and using file hosting services. Nextcloud application functionally is similar to Dropbox.

Configuring Keycloak and Nextcloud

Keycloak side

  • login to keycloak using the admin account
  • Under Clients, create a new client with Client ID “nextcloud” and Root URL “cloud.mydomain.intra”
  • On next screen, under the Settings tab, change Access Type from public to confidential, then Save
  • Go the the Credentials tab, note the Secret
  • OPTIONAL: If there is no registered user yet you can create a test user: go to Users, click the Add User button, fill the Username with “test” and save. Then go to the Credentials tab, put the new password, toggle the Temporary option to OFF, press Reset Password and confirm

Keycloak is now ready to be used for Nextcloud.

NextCloud side

  • login to your Nextcloud instance with the admin account
  • Click on the user profile, then Apps Example image

  • Go to Social & communication and install the Social Login app
  • Go to Settings (in your user profile) the Social Login

    Example image

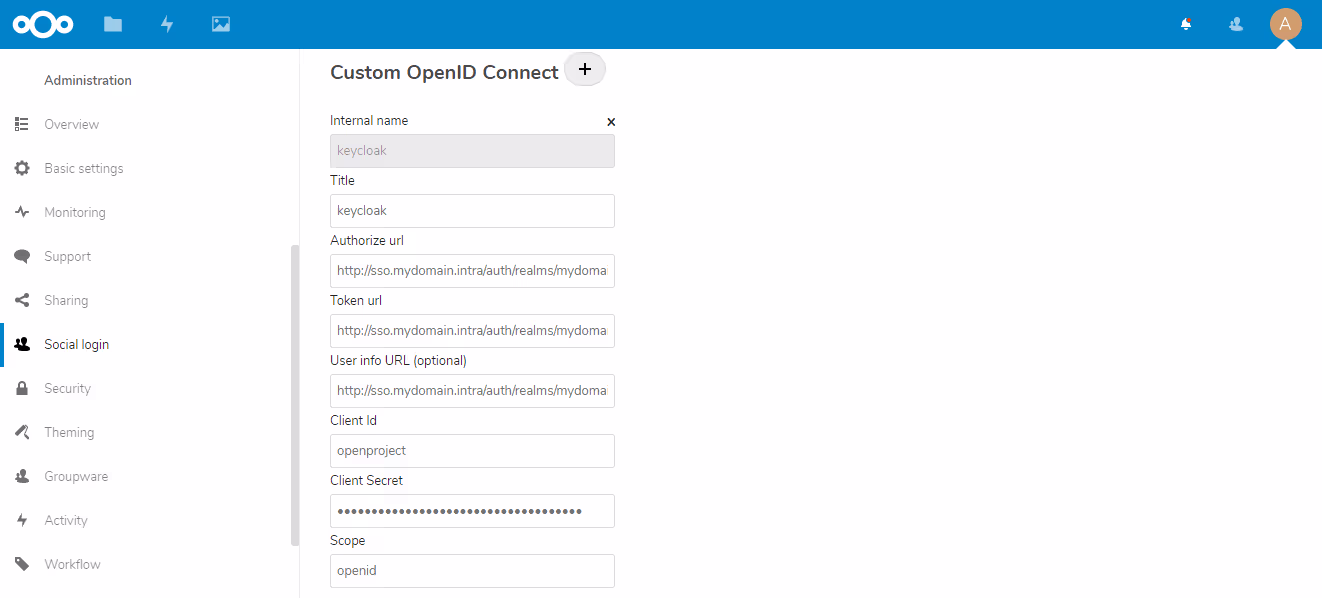

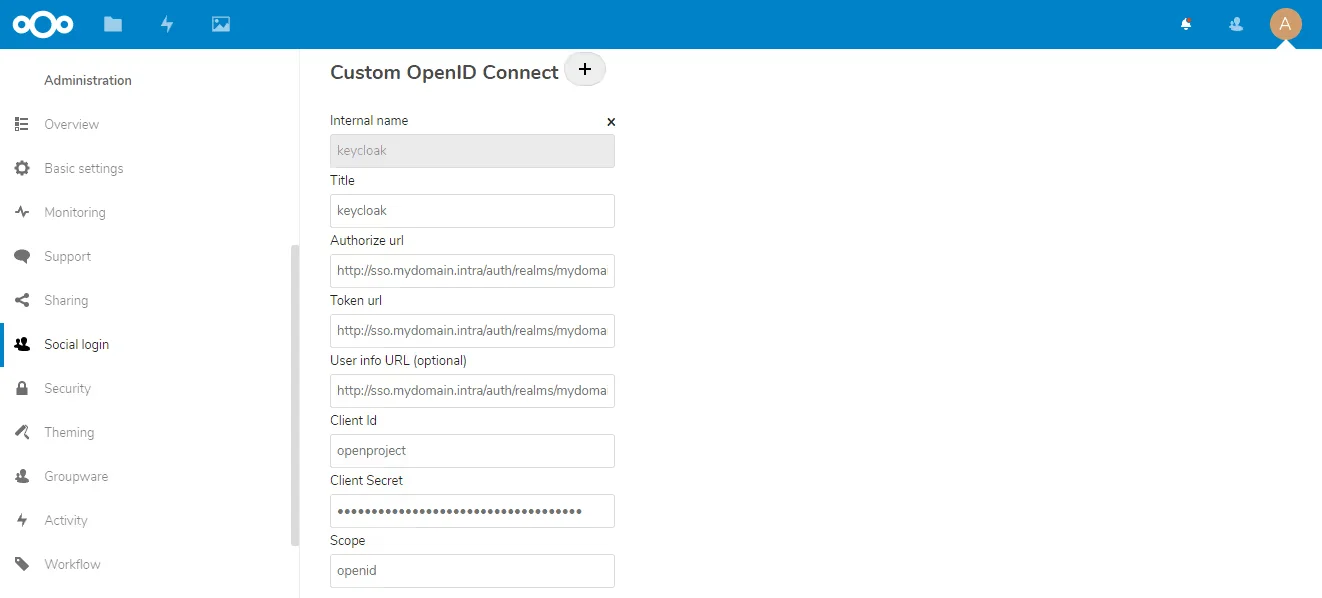

  • Add a new Custom OpenID Connect by clicking on the + to its side
  • Fill the following:
    • Title -> “keycloak”
    • Authorize url -> https://keycloak.mydomain.intra:8443/auth/realms/mydomain/protocol/openid-connect/auth
    • Token url -> https:/keycloak.mydomain.intra:8443/auth/realms/mydomain/protocol/openid-connect/token
    • Client id -> “nextcloud”
    • Client Secret -> put the secret you noted down during the Keycloak configuration
    • Scope -> “openid”
  • Press Save

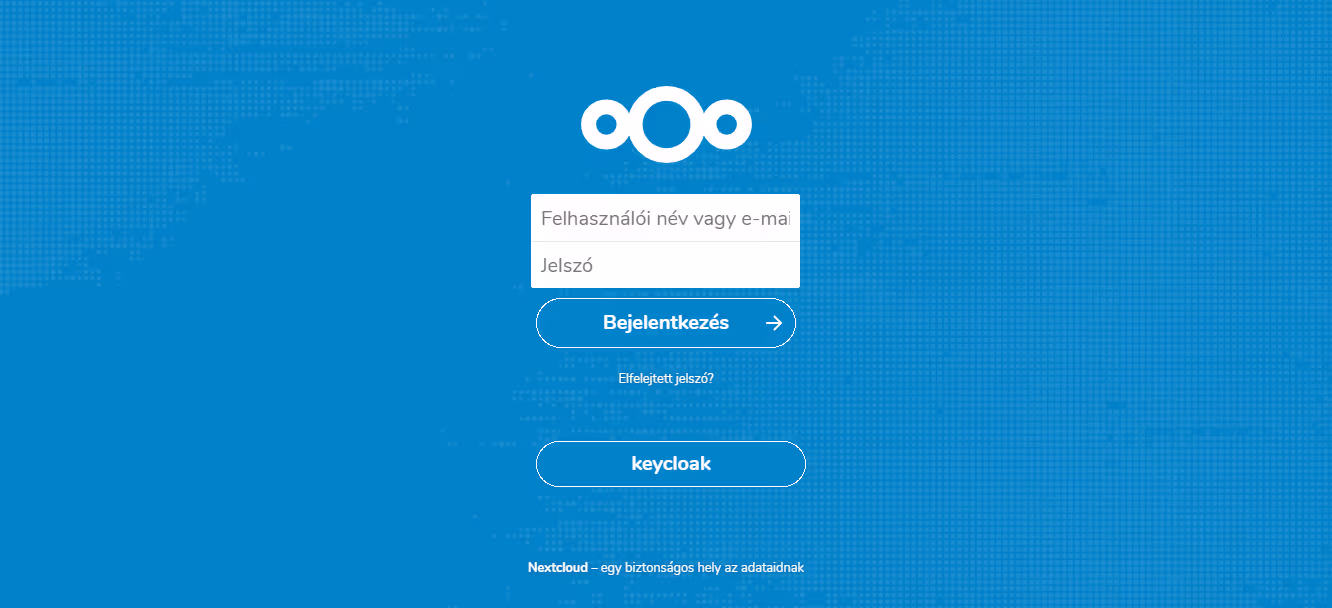

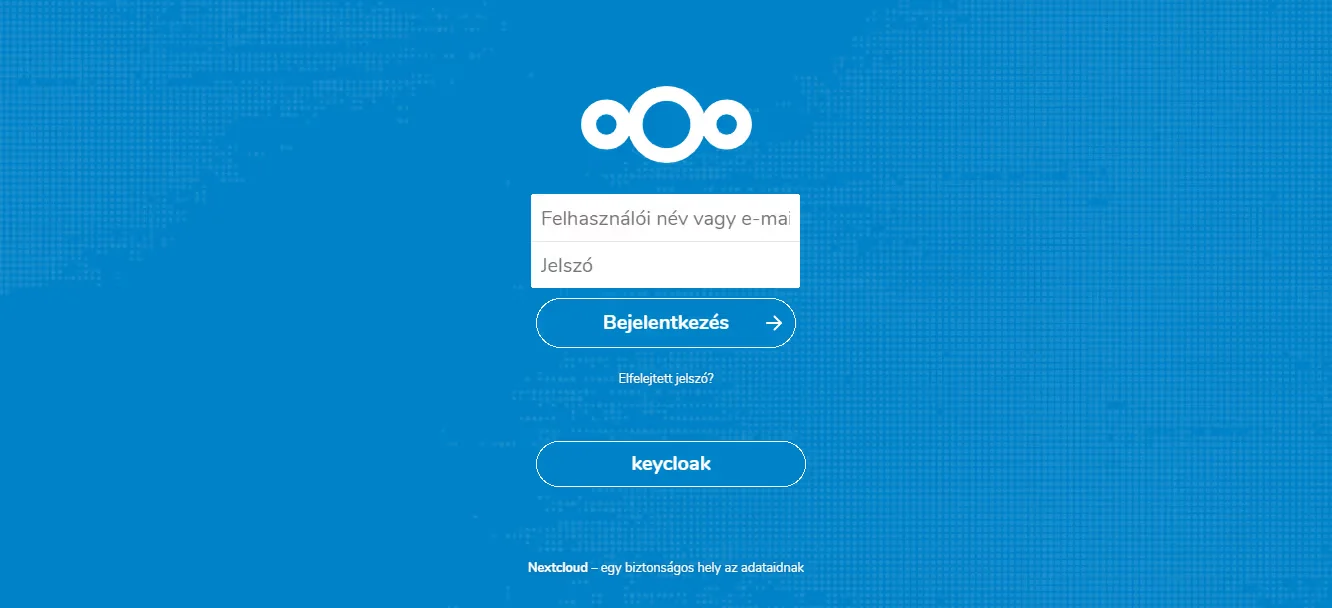

Your Nextcloud instance is now configured. Log out and log back in using the Alternative Logins -> keycloak method on the login page. It should redirect you to a keycloak auth form where you can log in with a registered keycloak user, then back to Nextcloud where you are now logged. Example image
