Install Cluster Logging Operator on OpenShift 4

Openshift
Page content

In this Post I will show you how you can install the Cluster Logging Operator on an OpenShift 4.

Parts of the Openshift 4 series

RedHat pull secret and enable Red Hat Operators

To install the RedHat pull secret. First download it from the url.

If you did’t addid at the install create the secret kike this:

nano pull-secret.json
{
  "auths": {
    "registry.redhat.io": {
      "username": "redhat-user",
      "password": "redhat-user-pass",
      "email": "redhat-user-email",
      "auth": "redhat-user-auth-key"
    }
  }
}

oc set data secret/pull-secret -n openshift-config --from-file=.dockerconfigjson=./pull-secret.json

Modify the following objects to enable Red Hat Operators.

oc edit configs.samples.operator.openshift.io/cluster -o yaml

apiVersion: samples.operator.openshift.io/v1
kind: Config
metadata:
  ...
spec:
  architectures:
  - x86_64
  managementState: Managed
status:
  architectures:
  ...
  managementState: Managed
  version: 4.9.0-0.okd-2021-11-28-035710

Second, run the following command to edit the Operator Hub configuration file and set all source to disabled: false:

oc edit operatorhub cluster -o yaml
...
spec:
  disableAllDefaultSources: true
  sources:
  - disabled: false
    name: community-operators
  - disabled: false
    name: certified-operators
  - disabled: false
    name: redhat-operators
  - disabled: false
    name: redhat-marketplace
status:
  sources:
  - disabled: false
    name: community-operators
    status: Success
  - disabled: false
    message: CatalogSource.operators.coreos.com "redhat-marketplace" not found
    name: redhat-marketplace
    status: Error
  - disabled: false
    message: CatalogSource.operators.coreos.com "redhat-operators" not found
    name: redhat-operators
    status: Error
  - disabled: false
    message: CatalogSource.operators.coreos.com "certified-operators" not found
    name: certified-operators
    status: Error

oc get catalogsource --all-namespaces
NAMESPACE               NAME                  DISPLAY               TYPE      PUBLISHER   AGE
openshift-marketplace   certified-operators   Certified Operators   grpc      Red Hat     37m
openshift-marketplace   community-operators   Community Operators   grpc      Red Hat     289d
openshift-marketplace   redhat-marketplace    Red Hat Marketplace   grpc      Red Hat     37m
openshift-marketplace   redhat-operators      Red Hat Operators     grpc      Red Hat     37m

Install Ellasticsearch Operator

Create Operators namespaces:

cat << EOF >penshift_operators_redhatnamespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: openshift-operators-redhat
  annotations:
    openshift.io/node-selector: ""
  labels:
    openshift.io/cluster-monitoring: "true"
EOF

oc apply -f penshift_operators_redhatnamespace.yaml
oc project openshift-logging

Create OperatorGroup object

cat << EOF >openshift-operators-redhat-operatorgroup.yaml
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: openshift-operators-redhat
  namespace: openshift-operators-redhat
spec: {}
EOF

oc apply -f openshift-operators-redhat-operatorgroup.yaml

Subscribe a Namespace to the Cluster Logging Operator:

cat << EOF >cluster-logging-sub.yaml
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: elasticsearch-operator
  namespace: openshift-operators-redhat
spec:
  channel: stable
  installPlanApproval: Automatic
  name: elasticsearch-operator
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

oc apply -f cluster-logging-sub.yaml

oc get csv
NAME                               DISPLAY                            VERSION    REPLACES                           PHASE
elasticsearch-operator.5.3.1-12    OpenShift Elasticsearch Operator   5.3.1-12                                      Succeeded

Install Logging Operator

Create Operators namespaces:

cat << EOF >ocp_cluster_logging_namespace.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: openshift-logging
  annotations:
    openshift.io/node-selector: ""
  labels:
    openshift.io/cluster-logging: "true"
    openshift.io/cluster-monitoring: "true"
EOF

oc apply -f ocp_cluster_logging_namespace.yaml
oc project openshift-logging

Create OperatorGroup object

cat << EOF >cluster-logging-operatorgroup.yaml
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: cluster-logging
  namespace: openshift-logging
spec:
  targetNamespaces:
  - openshift-logging
EOF

oc apply -f cluster-logging-operatorgroup.yaml

Subscribe a Namespace to the Cluster Logging Operator:

cat << EOF >cluster-logging-sub.yaml
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: cluster-logging
  namespace: openshift-logging
spec:
  channel: "stable" # Set Channel
  name: cluster-logging
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

oc apply -f cluster-logging-sub.yaml

oc get csv
NAME                               DISPLAY                            VERSION    REPLACES                           PHASE
cluster-logging.5.3.1-12           Red Hat OpenShift Logging          5.3.1-12                                      Succeeded
elasticsearch-operator.5.3.1-12    OpenShift Elasticsearch Operator   5.3.1-12                                      Succeeded

Deploy Cluster logging stack

Create a Cluster Logging instance:

cat << EOF >cluster-logging-instance.yaml
apiVersion: "logging.openshift.io/v1"
kind: "ClusterLogging"
metadata:
  name: "instance"
  namespace: "openshift-logging"
spec:
  managementState: "Managed"
  logStore:
    type: "elasticsearch"
    retentionPolicy:
      application:
        maxAge: 1d
      infra:
        maxAge: 7d
      audit:
        maxAge: 7d
    elasticsearch:
      nodeCount: 3
      storage:
        storageClassName: "<storage_class_name>"
        size: 200G
      resources:
          limits:
            memory: "16Gi"
          requests:
            memory: "16Gi"
      proxy:
        resources:
          limits:
            memory: 256Mi
          requests:
            memory: 256Mi
      redundancyPolicy: "SingleRedundancy"
  visualization:
    type: "kibana"
    kibana:
      replicas: 1
  curation:
    type: "curator"
    curator:
      schedule: "30 3 * * *"
  collection:
    logs:
      type: "fluentd"
      fluentd: {}
EOF

oc apply -f cluster-logging-instance.yaml

oc get deployment
cluster-logging-operator       1/1     1            1           18h
elasticsearch-cd-x6kdekli-1    0/1     1            0           6m54s
elasticsearch-cdm-x6kdekli-1   1/1     1            1           18h
elasticsearch-cdm-x6kdekli-2   0/1     1            0           6m49s
elasticsearch-cdm-x6kdekli-3   0/1     1            0           6m44s

Defining Kibana index patterns

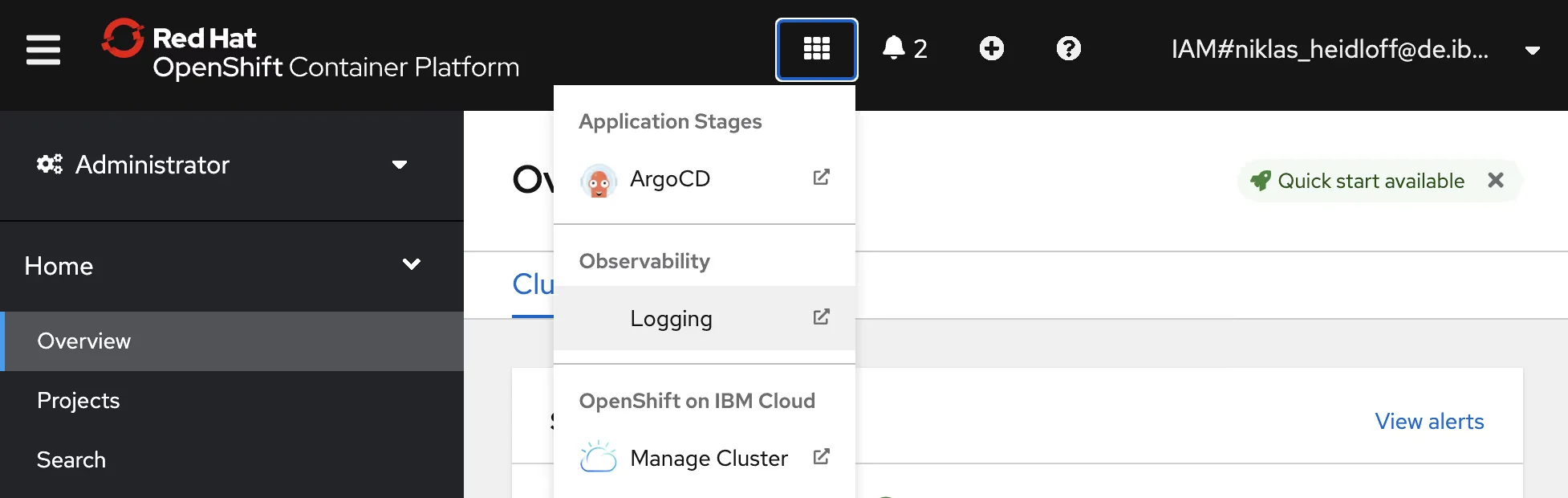

In the OpenShift Container Platform console, click the Application Launcher and select Logging.

Logging Operator

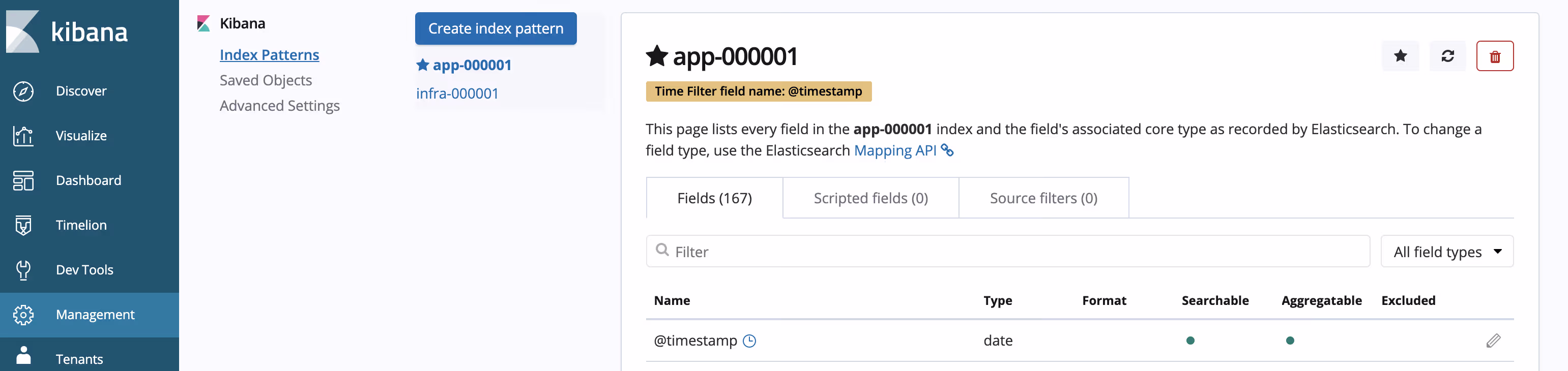

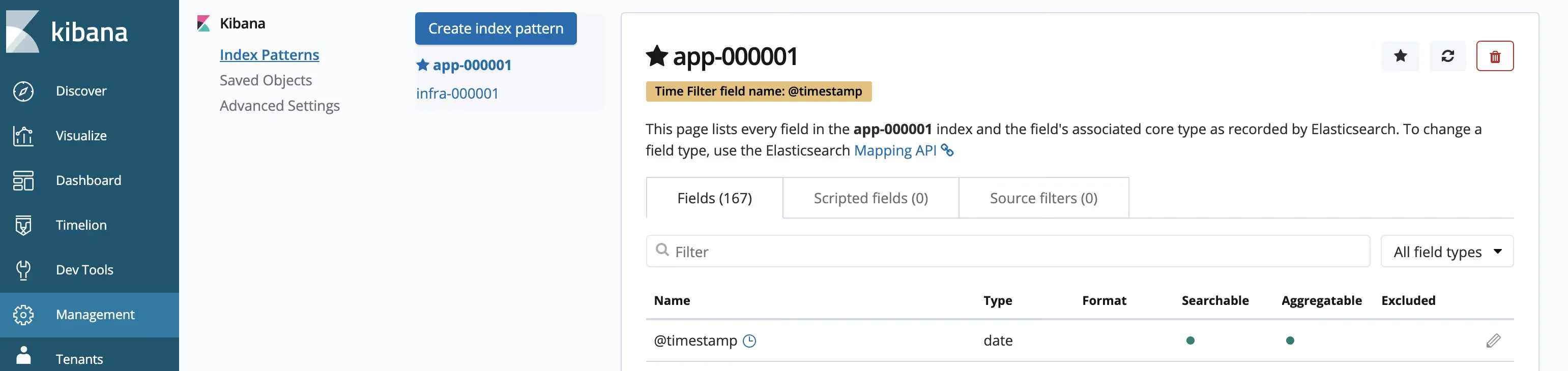

Create your Kibana index patterns by clicking Management → Index Patterns → Create index pattern:

  • Each user must manually create index patterns when logging into Kibana the first time in order to see logs for their projects. Users must create an index pattern named app and use the @timestamp time field to view their container logs.
  • Each admin user must create index patterns when logged into Kibana the first time for the app, infra, and audit indices using the @timestamp time field.
