Install vMWare Harbor

Page content

Vmware harbor ia an open source trusted cloud native registry project that stores, signs, and scans content.

Why harbor? Opeshift and Gitlab has its own docker regytry but nether can intgrate with clair Vulnerability scanner.

Install Docker and Docker-Compose

yum install epel-release wget -y
yum install -y yum-utils
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum install -y docker-ce

sudo yum install -y python-pip
pip install docker-compose

sudo systemctl start docker
sudo systemctl enable docker

Generate your own SSL certificate

nano certgen.sh
#!/bin/sh

export PASSPHRASE=$(head -c 500 /dev/urandom | tr -dc a-z0-9A-Z | head -c 128; echo)
DOMAIN=devopstales.intra

subj="
C=HU
ST=Pest
O=My Company
localityName=Budapest
commonName=*.$DOMAIN
organizationalUnitName=OU
emailAddress=root@$DOMAIN
"

openssl genrsa -des3 -out domain.key -passout env:PASSPHRASE 2048

openssl req \
    -new \
    -batch \
    -subj "$(echo -n "$subj" | tr "\n" "/")" \
    -key domain.key \
    -out domain.csr \
    -passin env:PASSPHRASE

cp domain.key domain.key.org

openssl rsa -in domain.key.org -out domain.key -passin env:PASSPHRASE

openssl x509 -req -days 3650 -in domain.csr -signkey domain.key -out domain.crt
cat domain.crt domain.key > domain.pem

chmod +x certgen.sh
./certgen.sh

mkdir -p /etc/docker/certs.d/harbor.devopstales.intra
cp domain.crt domain.key /etc/docker/certs.d/harbor.devopstales.intra/
cp domain.crt /etc/docker/certs.d/harbor.devopstales.intra/domain.cert
sudo systemctl restart docker

Install notary

curl -L https://github.com/theupdateframework/notary/releases/download/v0.6.1/notary-$(uname -s)-amd64 -o /usr/local/bin/notary
chmod +x /usr/local/bin/notary

mkdir -p ~/.docker/tls/harbor.devopstales.intra:4443/
cp ~/domain.crt ~/.docker/tls/harbor.devopstales.intra:4443/
cp ~/domain.key ~/.docker/tls/harbor.devopstales.intra:4443/
cp ~/domain.crt ~/.docker/tls/harbor.devopstales.intra:4443/domain.cert

Install Harbor

# https://github.com/vmware/harbor/releases/
wget https://storage.googleapis.com/harbor-releases/release-1.7.0/harbor-online-installer-v1.7.5.tgz
tar -xzf harbor-online-installer-v1.7.5.tgz

cd harbor
nano harbor.cfg
hostname = harbor.devopstales.intra
ui_url_protocol = https
ssl_cert = /root/domain.crt
ssl_cert_key = /root/domain.key

./prepare
./install.sh --with-notary --with-clair

docker login harbor.devopstales.intra

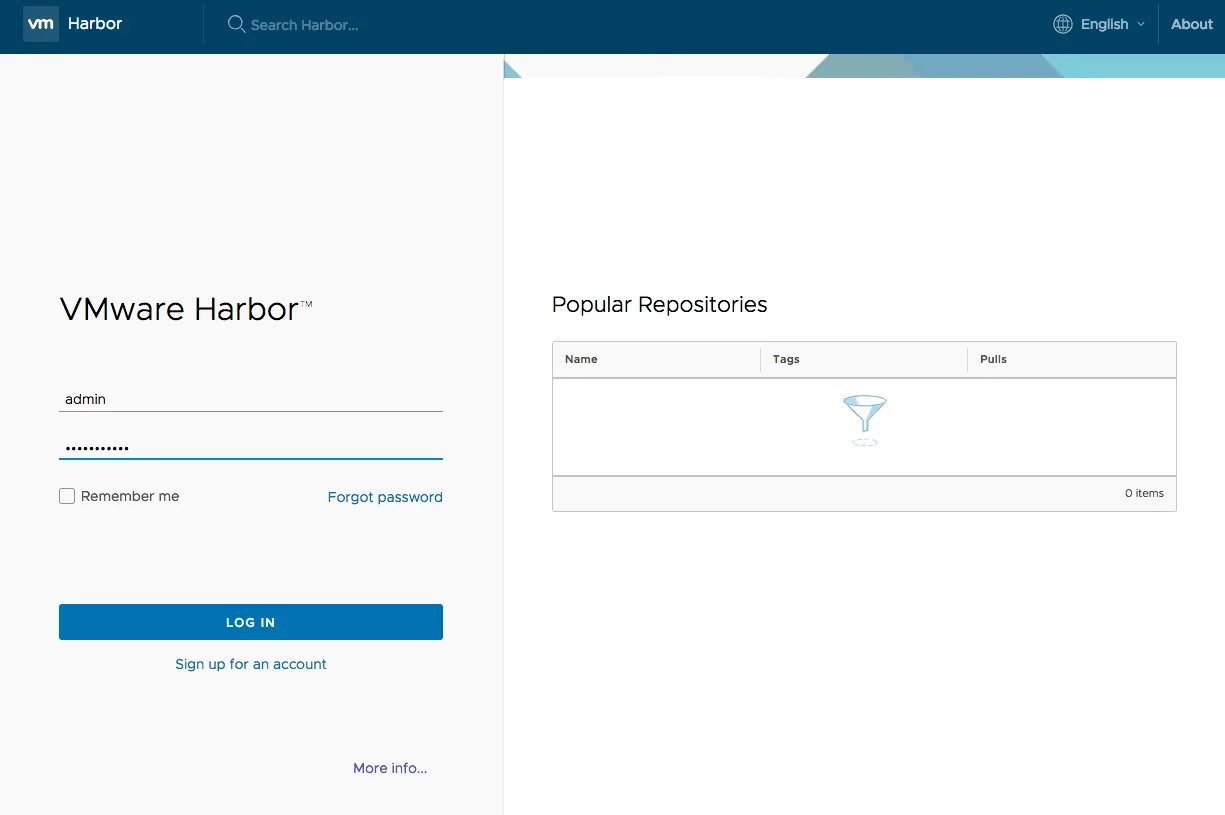

Access the Harbor UI with the username “admin” and password “Harbor12345” Example image

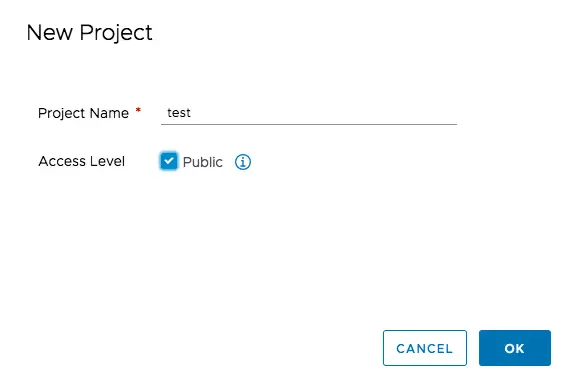

Create a nwe project. Example image

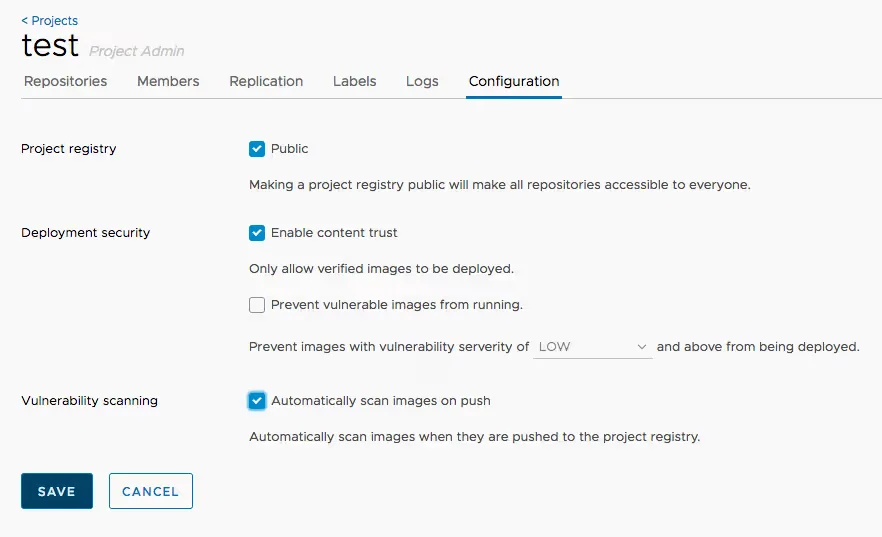

Configure automatic Vulnerability scan for project. Example image

docker pull nginx
docker tag nginx:latest harbor.devopstales.intra/test/nginx:V1
docker push harbor.devopstales.intra/test/nginx:V1

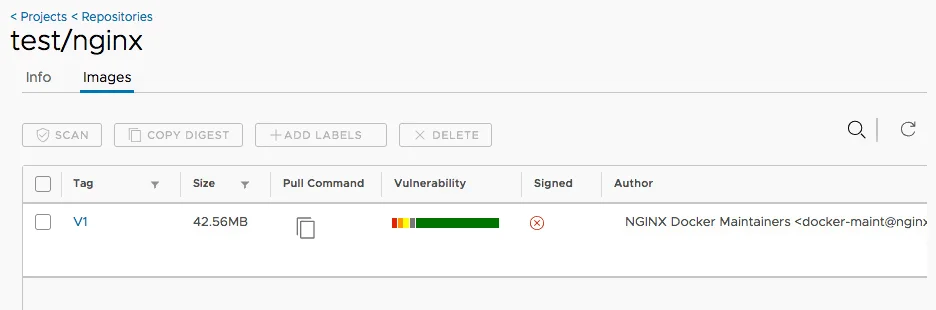

Example image

docker tag nginx:latest harbor.devopstales.intra/test/nginx:V2
export DOCKER_CONTENT_TRUST_SERVER=https://harbor.devopstales.intra:4443
export DOCKER_CONTENT_TRUST=1
docker push harbor.devopstales.intra/test/nginx:V2

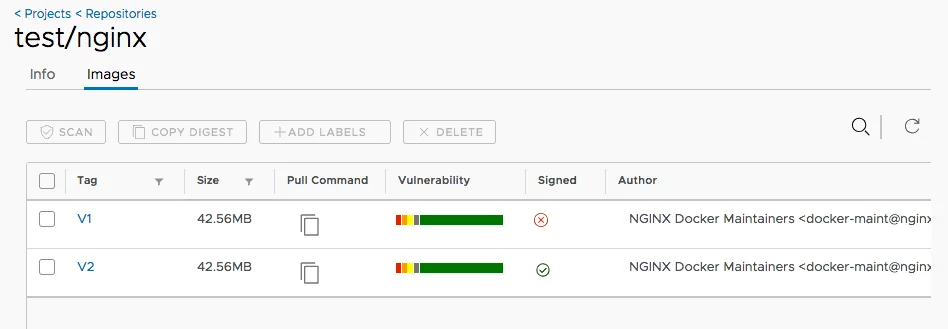

Example image
