pfsense: IPSec SSH connectivity issue

Page content

In this post I will setup an IPSec dynamic route-based vpn tunnel between two pfSense Appliances.

Main situation

I have two Pfsense firewalls for two sites. Sites are connected to each other with Pfsense IPsec tunnel. I experienced a strange issue, I can’t ssh from one site to a vm to the noter.

$ telnet 192.168.3.1  22
Trying 192.168.3.1...
Connected to 192.168.3.1.
Escape character is '^]'.
SSH-2.0-OpenSSH_7.4

I can get SSH banner with telnet but does not work.

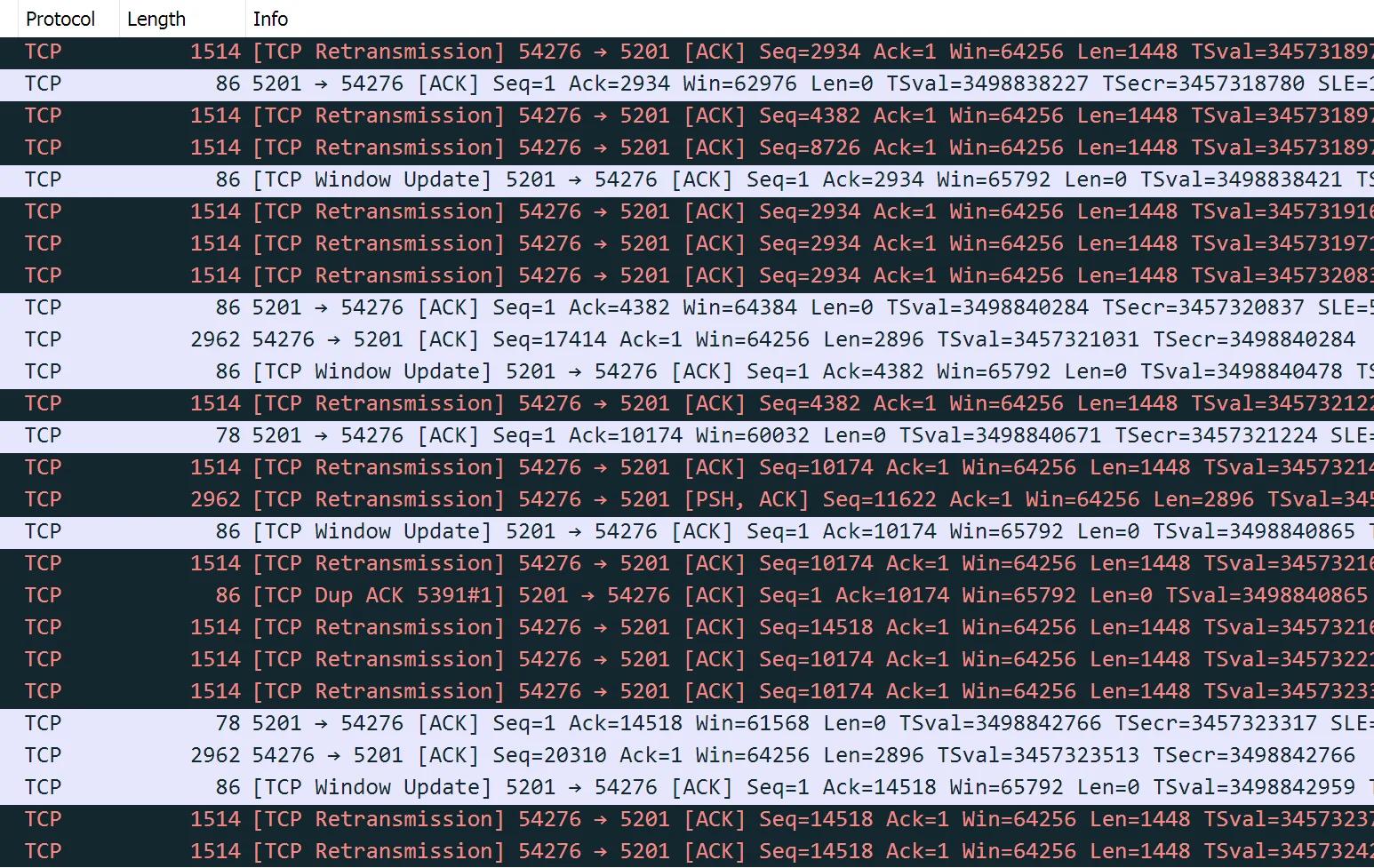

I’ve analyzed this a bit and with wireshark there are a lot of TCP - Retransmissions

TCP - Retransmissions

If I do a ping with Packet Size of 969 Byte everythin is okay, with 970 there is packetloss.

ping -f 192.168.3.1 -l  969

The solution

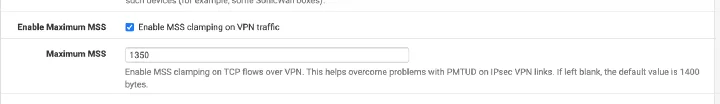

So there is a Issue with fragmentation. I enabled Maximum MMS in VPN->IPSec->Advanced Settings and set value to 1350

MSS Config

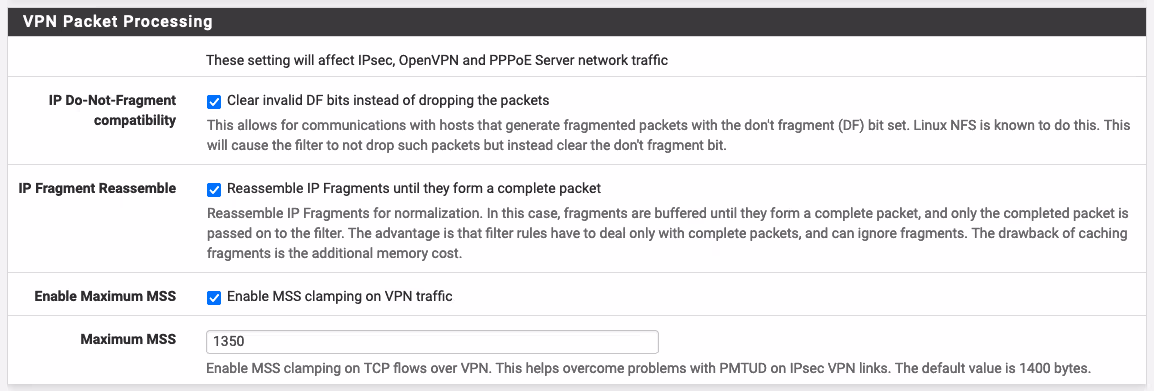

With the upgrade of Pfsense 2.6 this menu is change. It is in System->Advanced->Firewall & NAT

MSS Config
